Mistral

A typical European roof with timeless effect

Textured

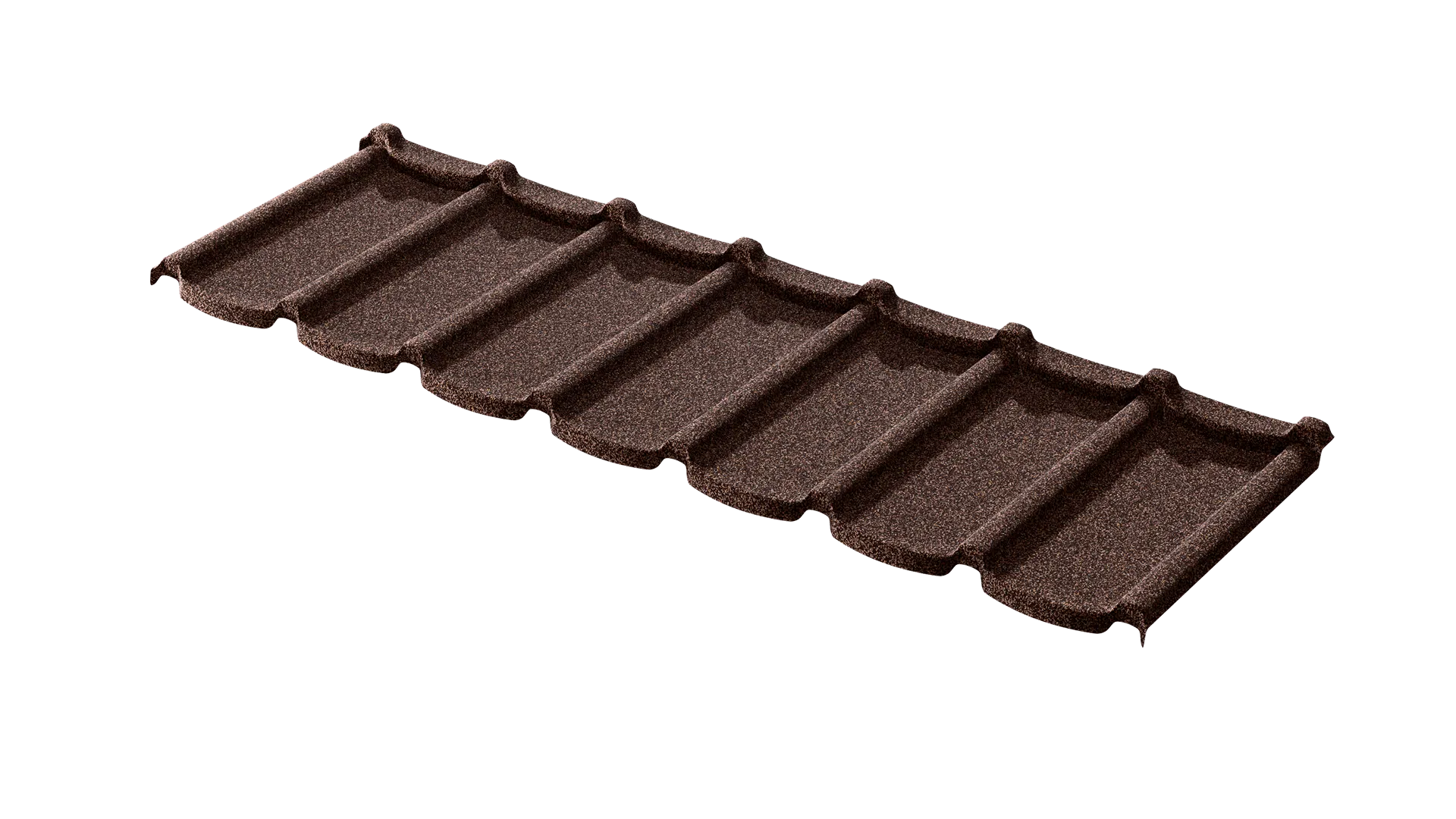

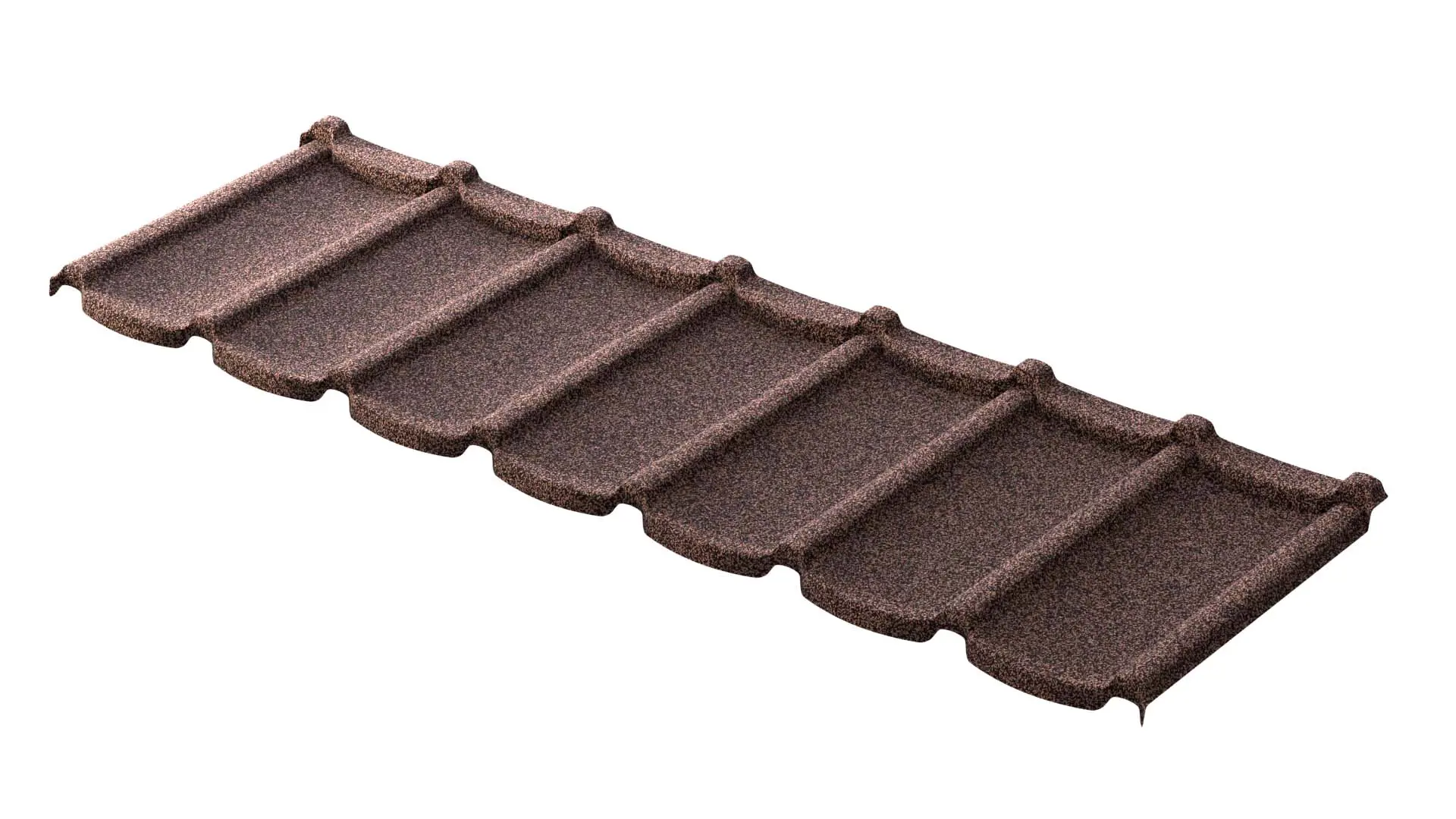

  • Coffee

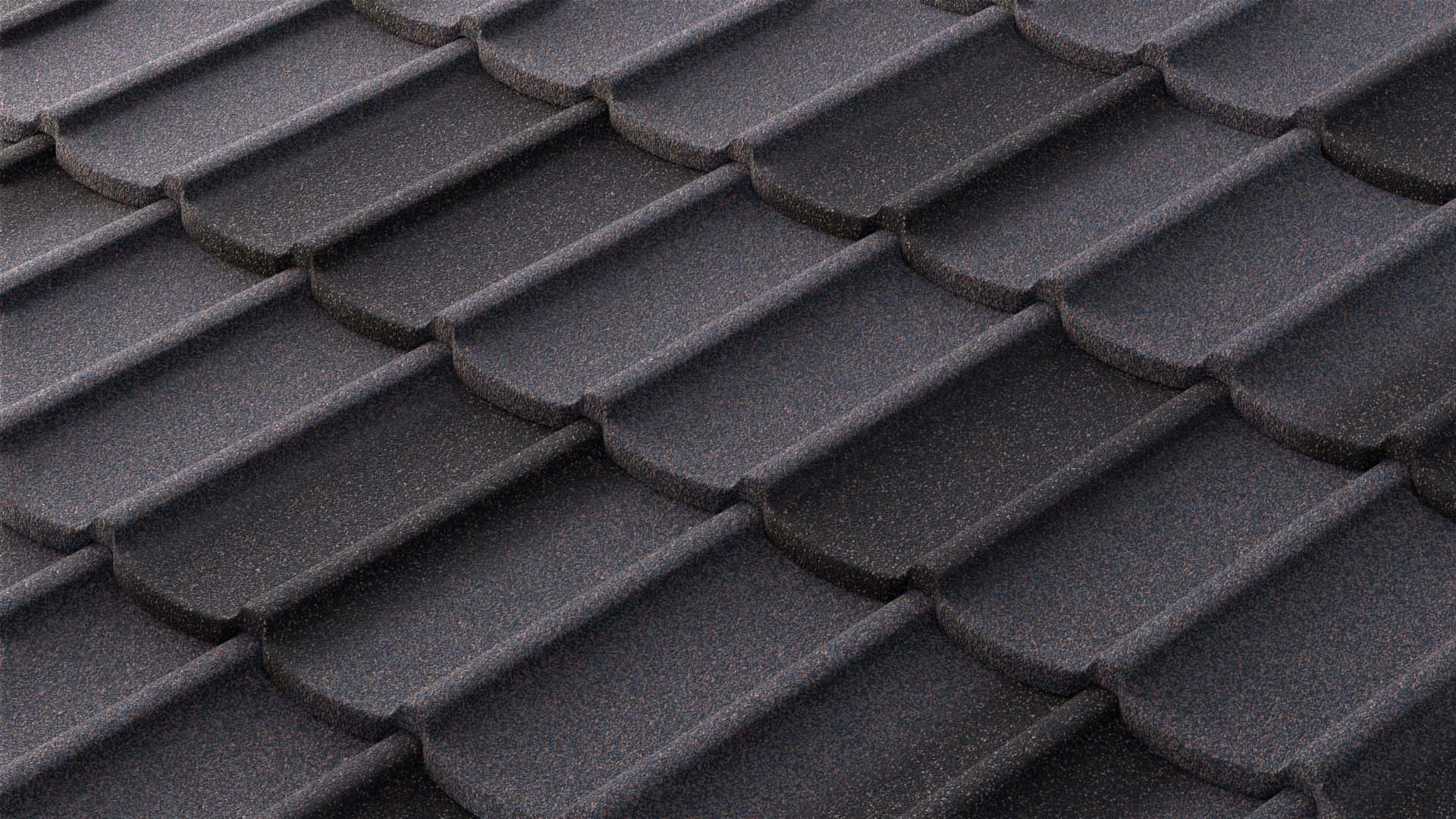

  • Malabar

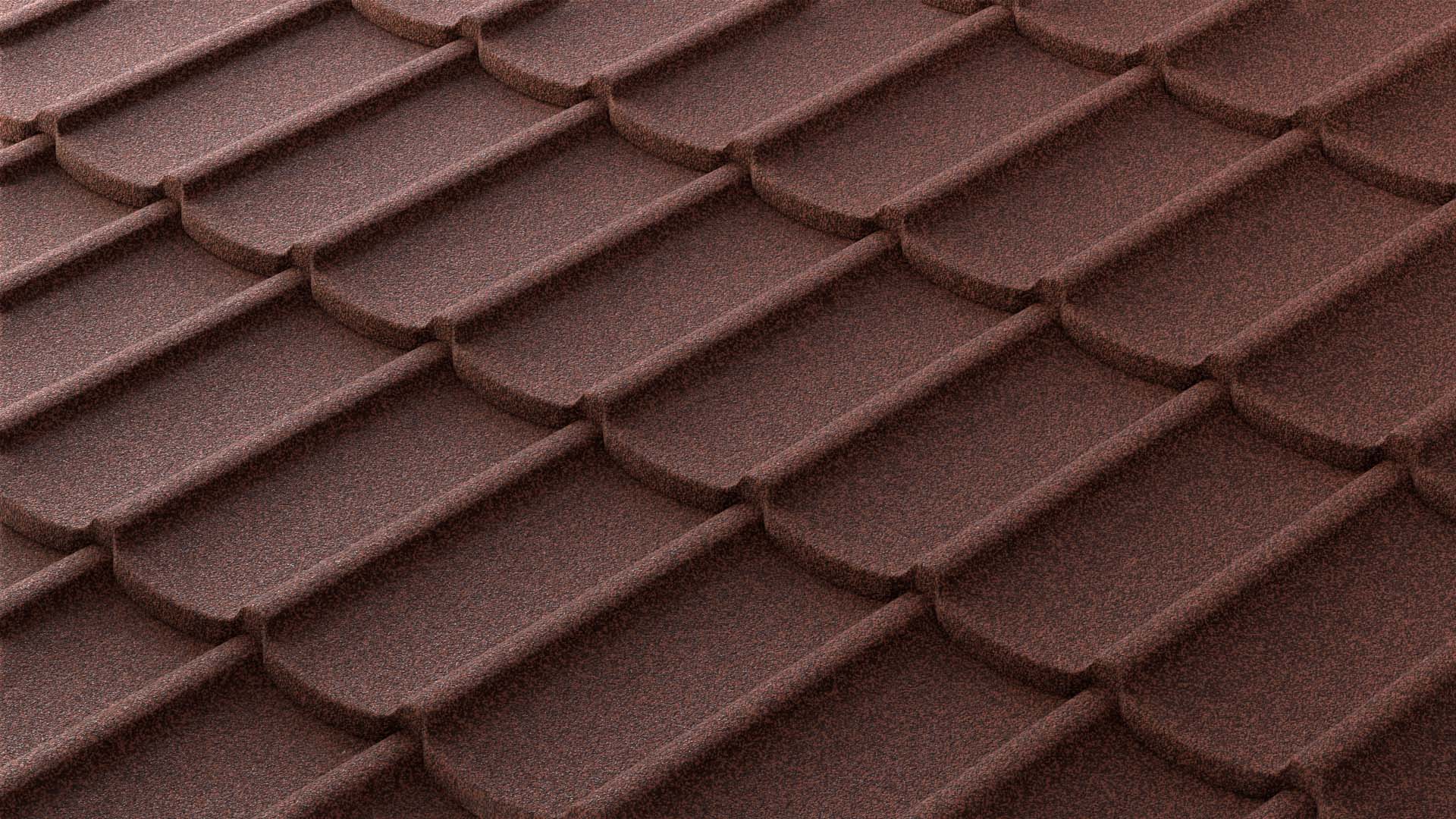

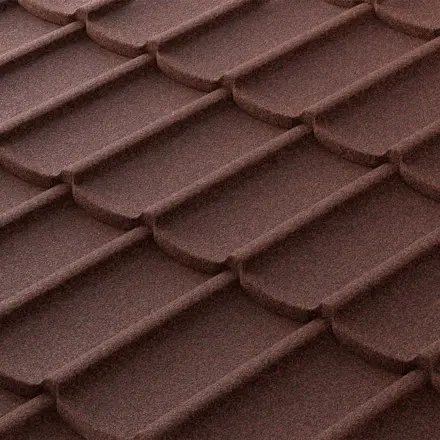

  • Scarlet

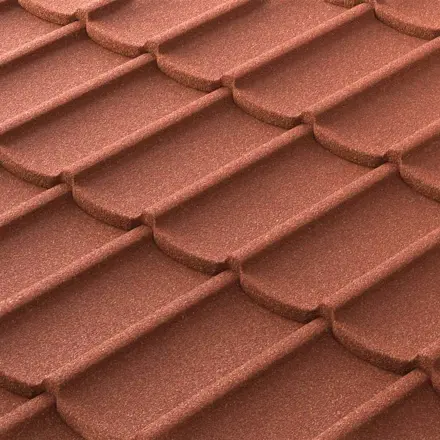

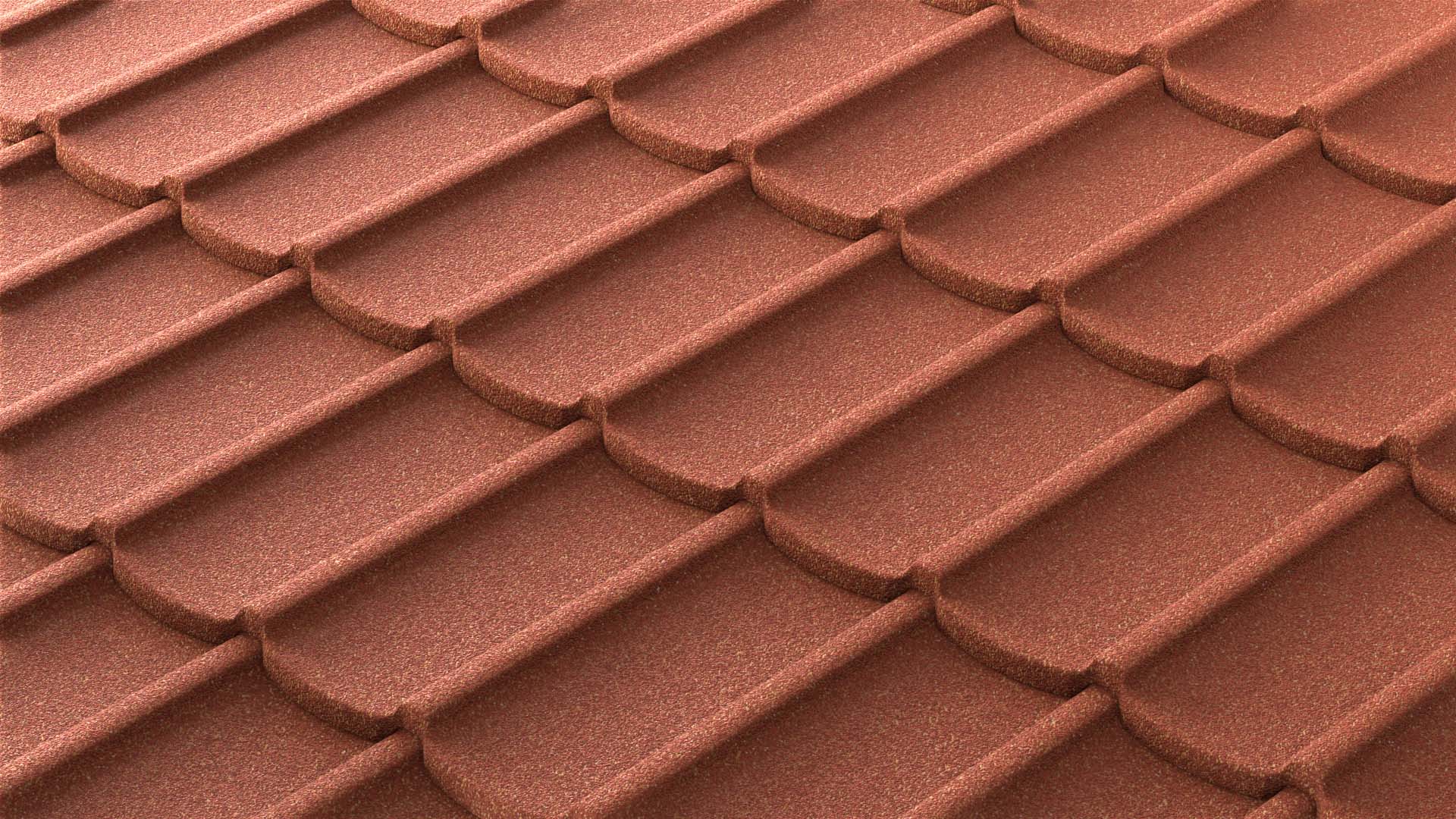

  • Terracotta

Paint

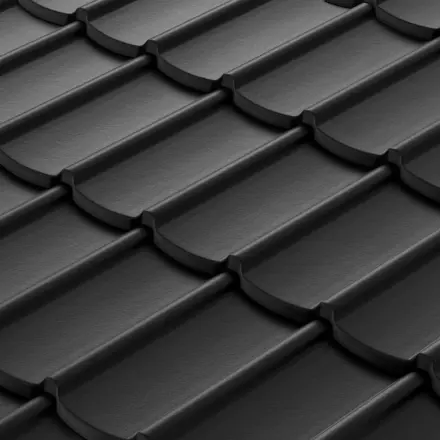

  • Matt Black
  • Matt Charcoal

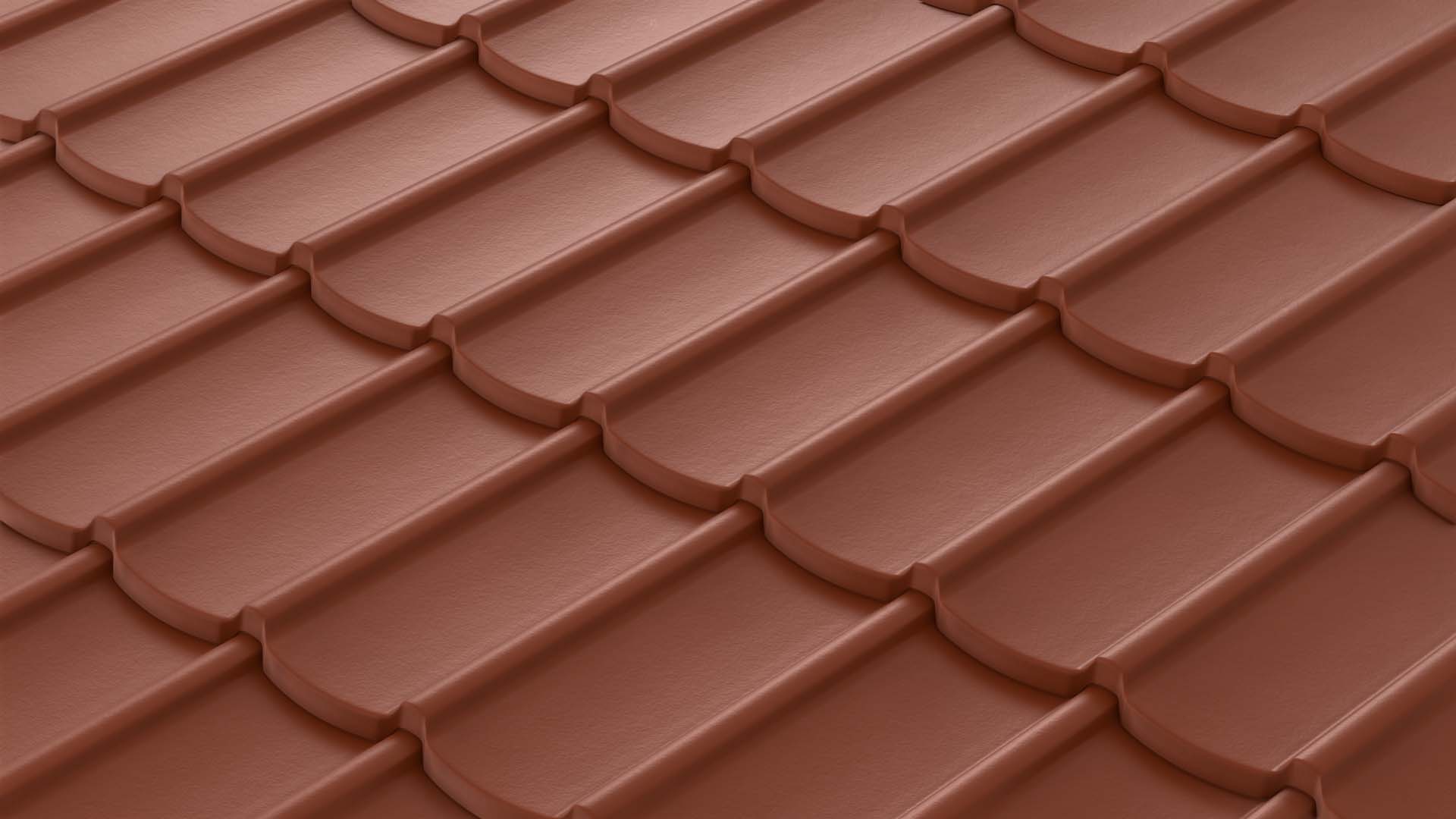

  • Matt Terracotta

Product specifications

Overall Length
1305 mm
Length of cover
1240 mm
Width of cover
367 mm
Roof cover /Tile
0.459 m2
Tiles /m2
2.18
Weight /Tile
3.00 kg
Maximum roof pitch
90 degrees
Minimum roof pitch
10 degrees

Technical documents

  • Mistral Brochure
    • pdf
  • Mistral Specification Sheet
    • pdf

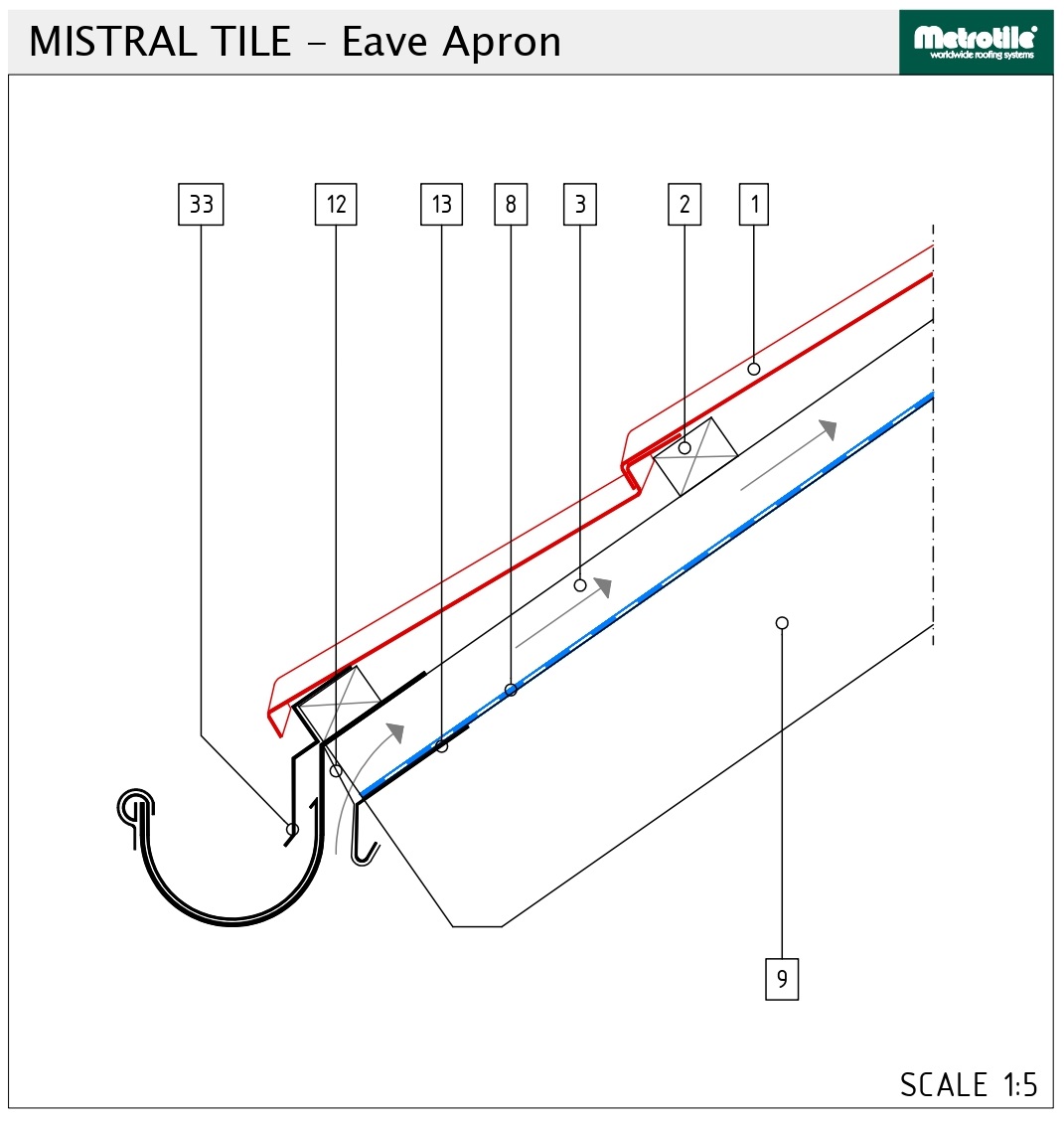

  • Mistral Eave Apron

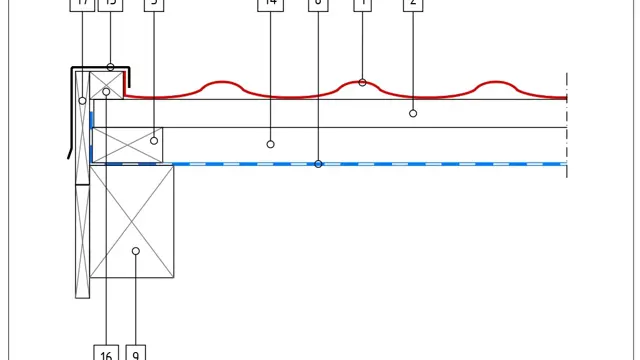

  • Mistral Box Barge Cover

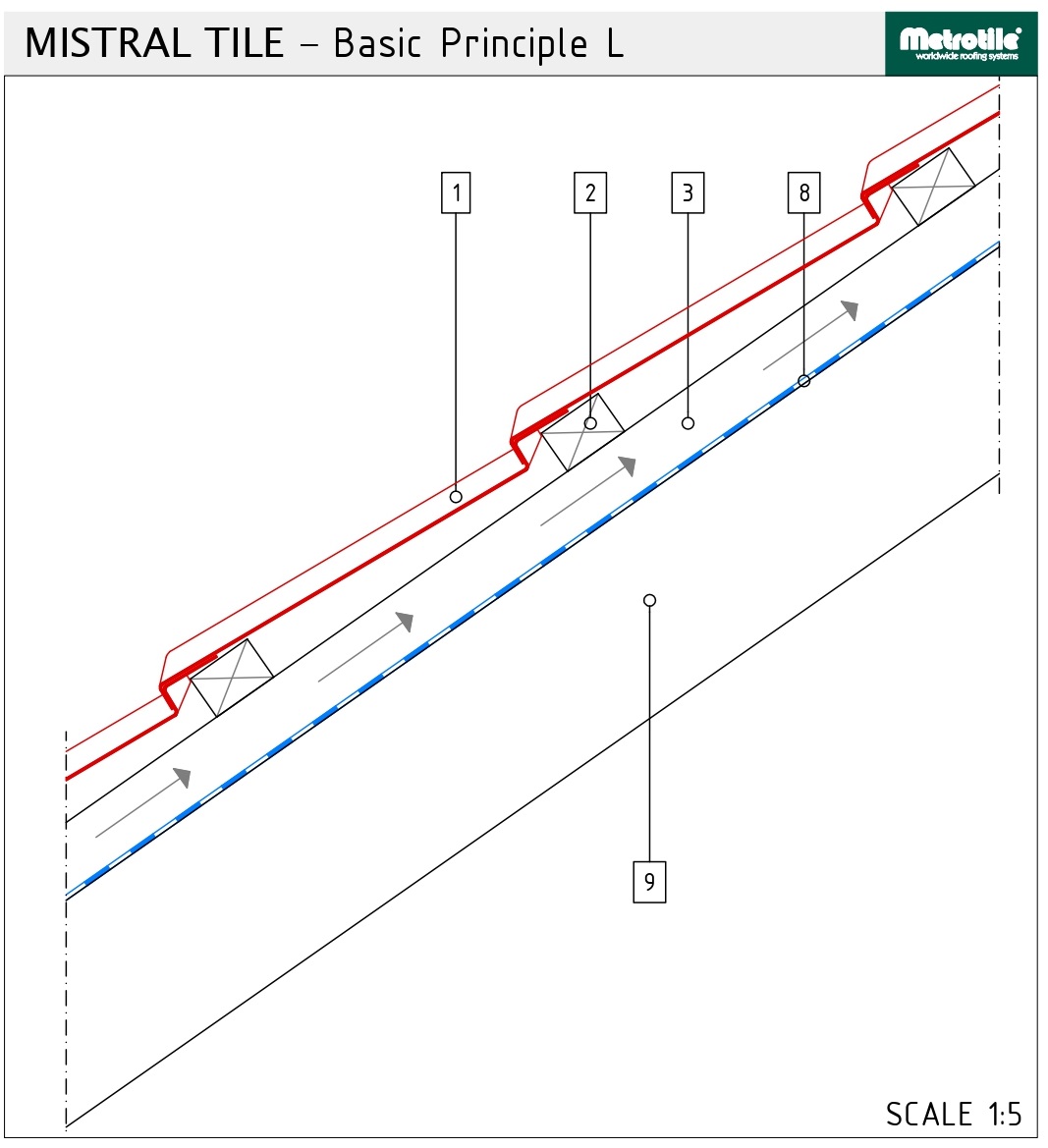

  • Mistral Basic Principle L
  • View all CAD Drawings View all documents
