iShingle

A wood shingle aesthetic without the fire risk

Beauty is not the only benefit of the iShingle these interlocking steel shingles are fire, hail and wind resistant.

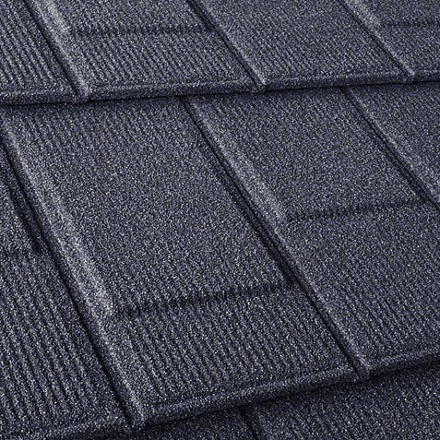

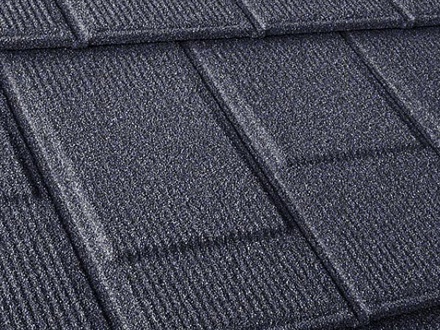

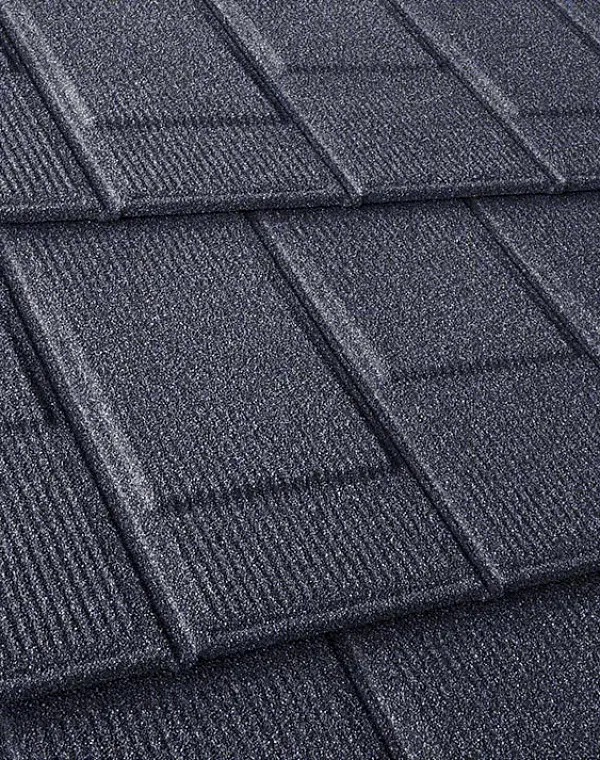

The iShingle is an six tile, stone-coated panel pressed from a high grade of protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.

Textured

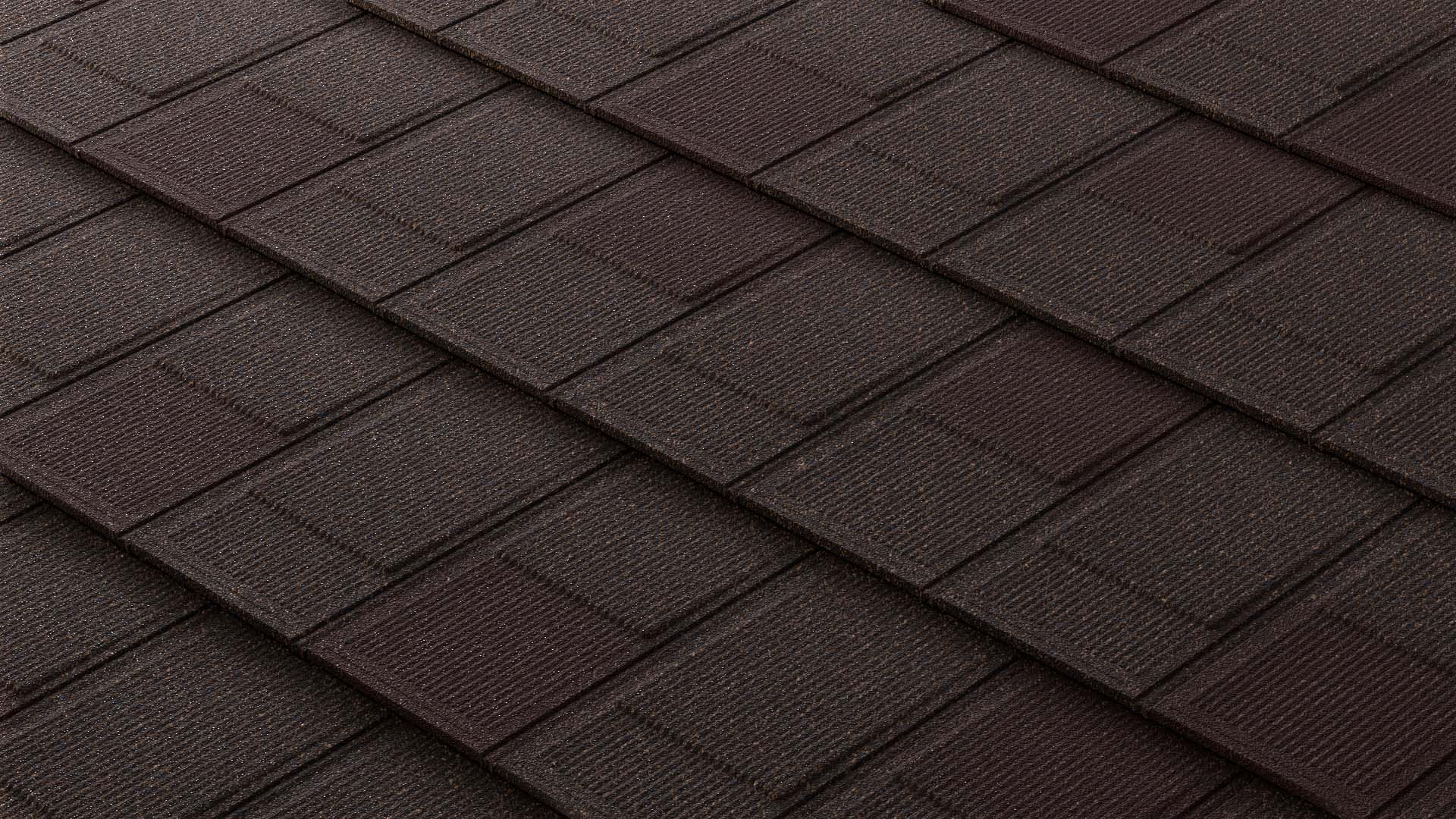

Bister Brown
Charcoal

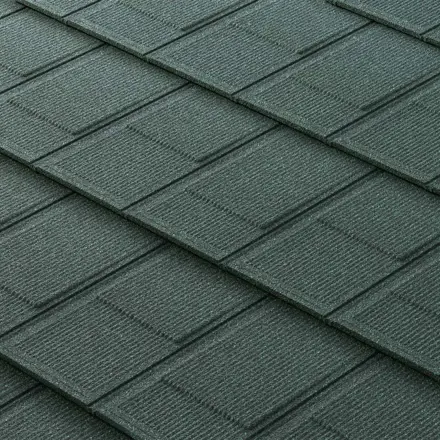

Greenstone

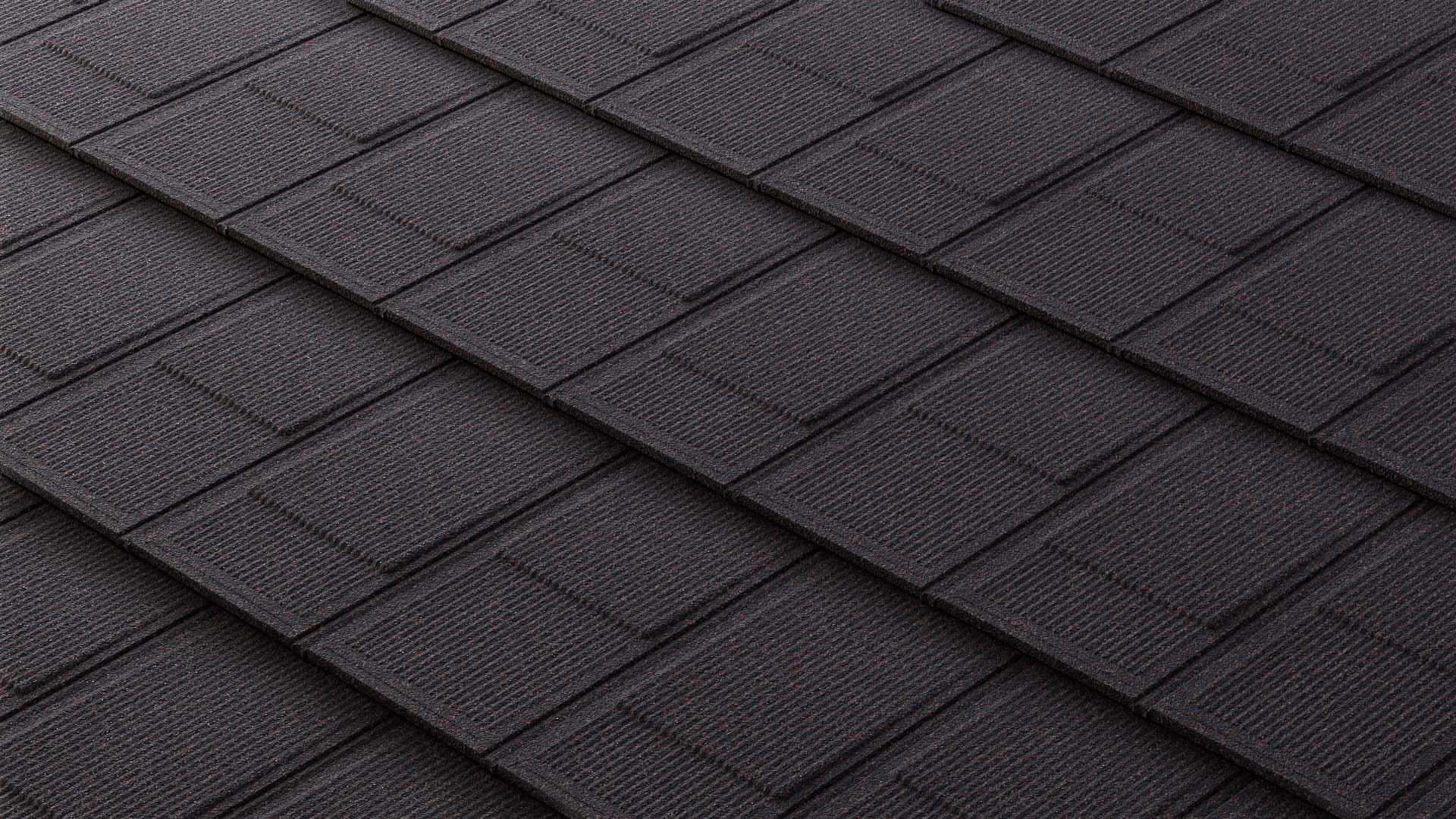

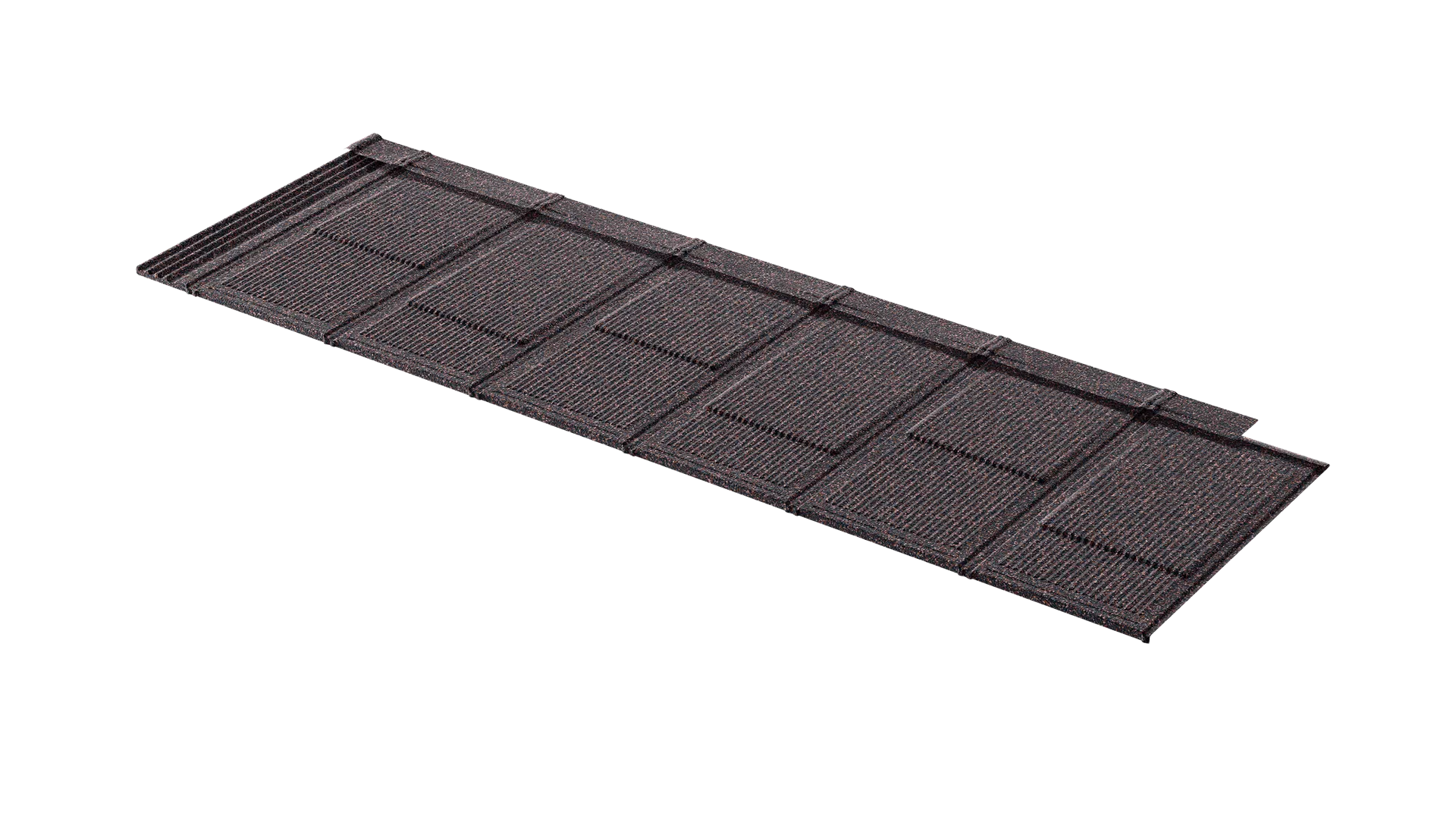

Ironbark

Paint

Matt Black

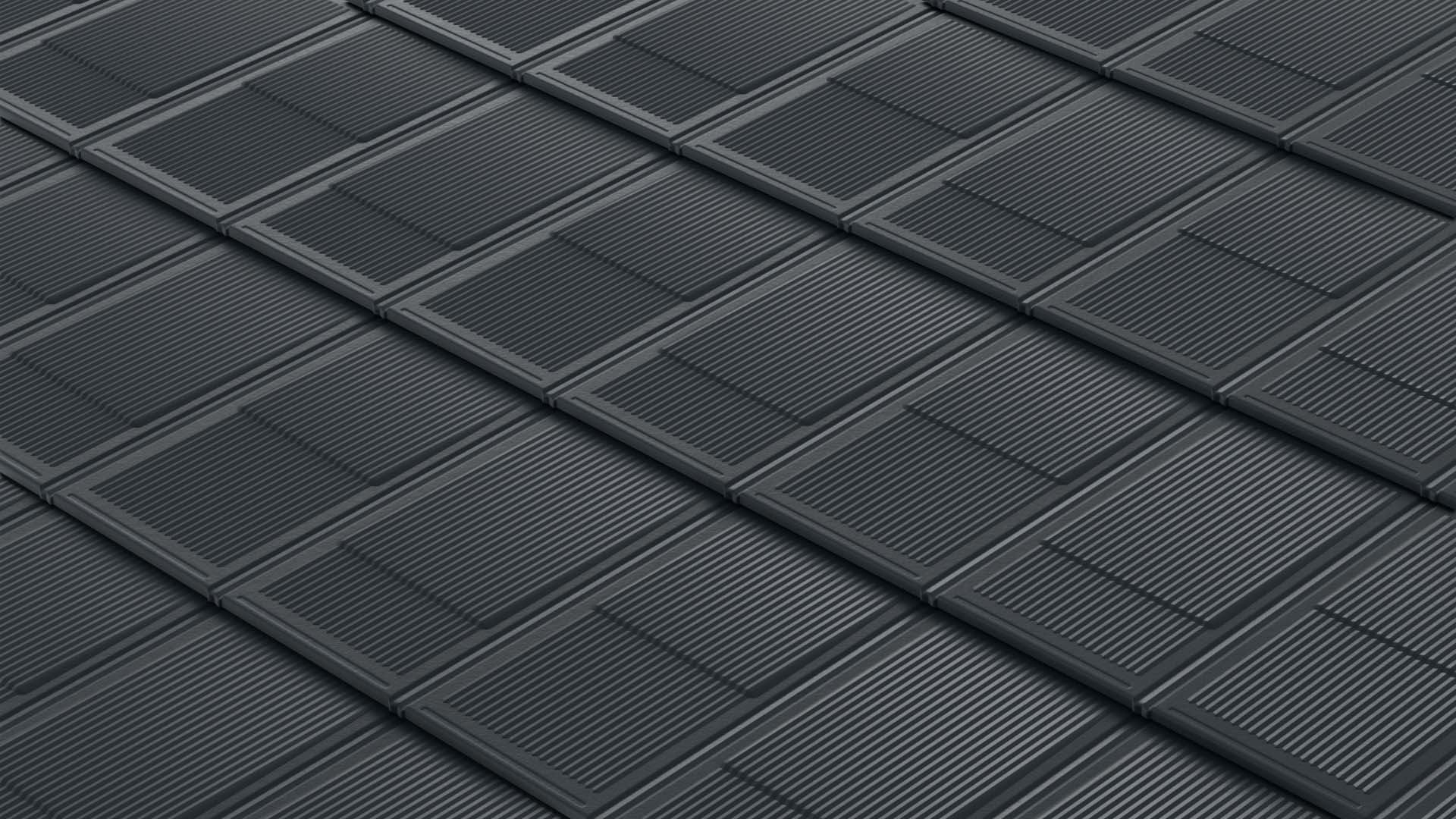

Matt Charcoal

Product specifications

Overall Length: 1330 mm
Length of cover: 1230 mm
Width of cover: 375 mm
Roof cover /Tile: 0.46 m2
Tiles /m2: 2.17
Weight /Tile: 3.29 kg
Maximum roof pitch: 90 degrees
Minimum roof pitch: 10 degrees

Technical documents

iShingle Brochure
- pdf
Download
iShingle Specification Sheet
- pdf
Download
iShingle Eave Apron
- DWG
- PDF

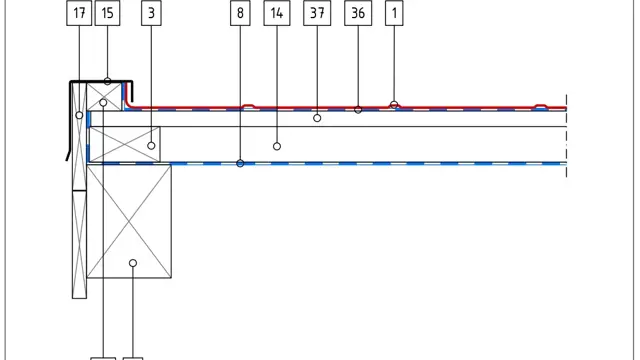

iShingle Box Barge 1
- DWG
- PDF

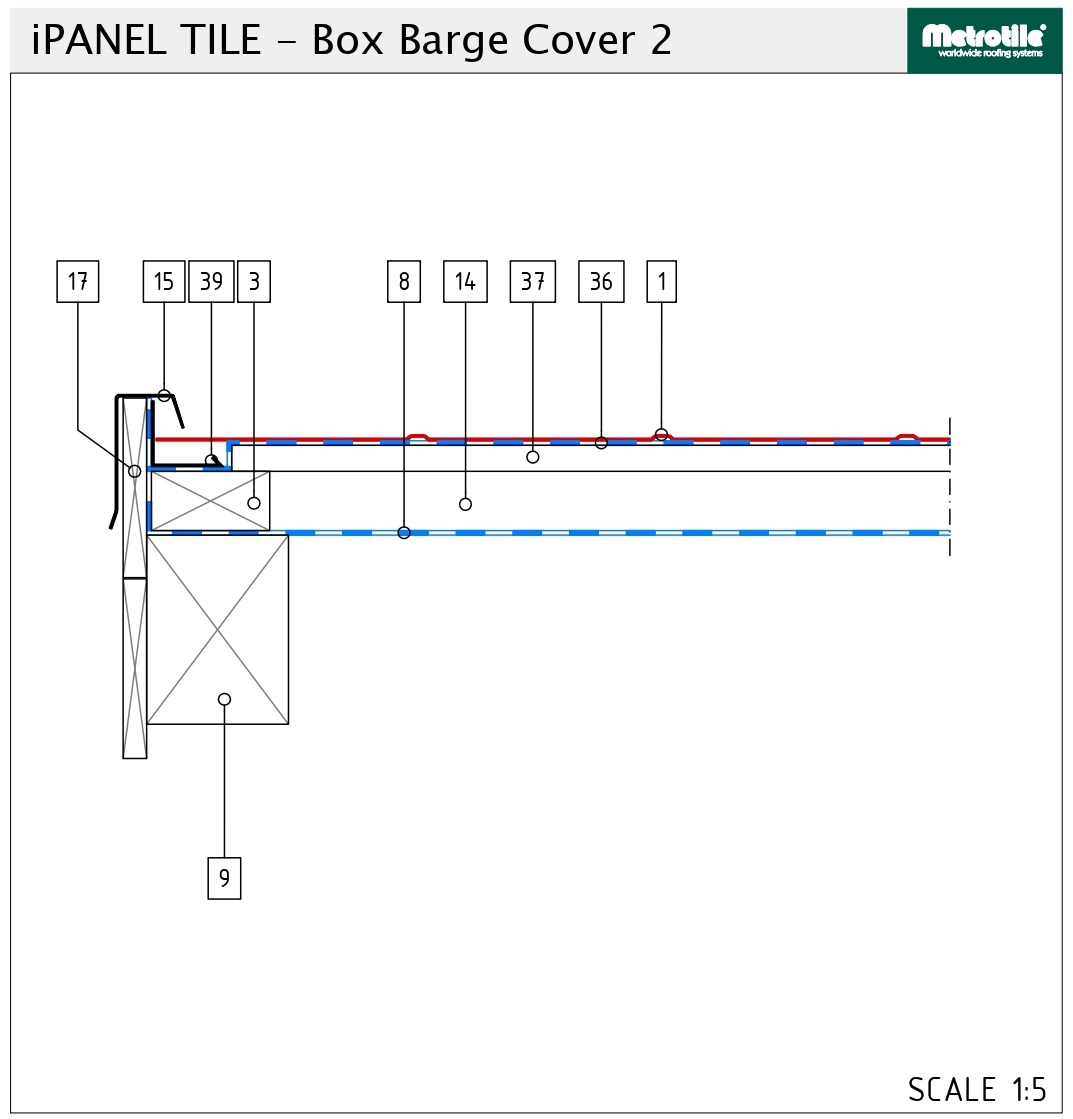

iShingle Box Barge 2
- DWG
- PDF
View all CAD Drawings View all documents
