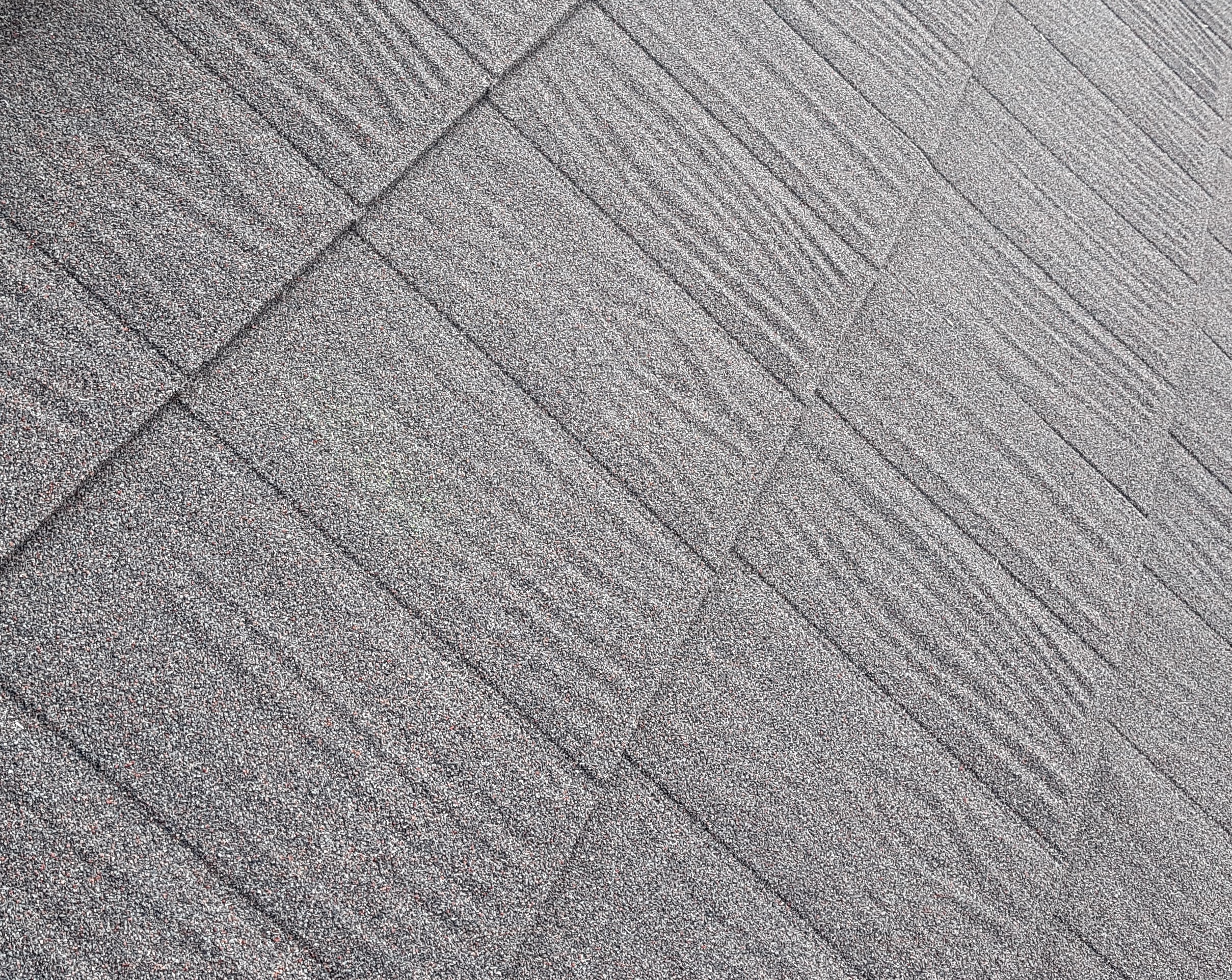

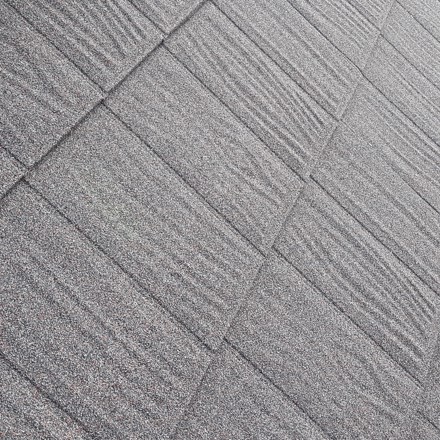

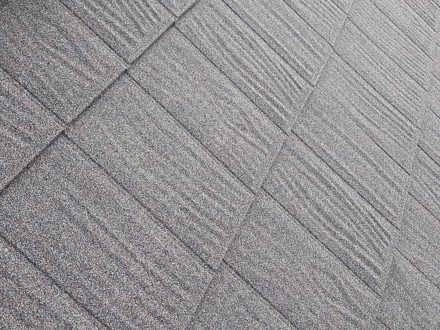

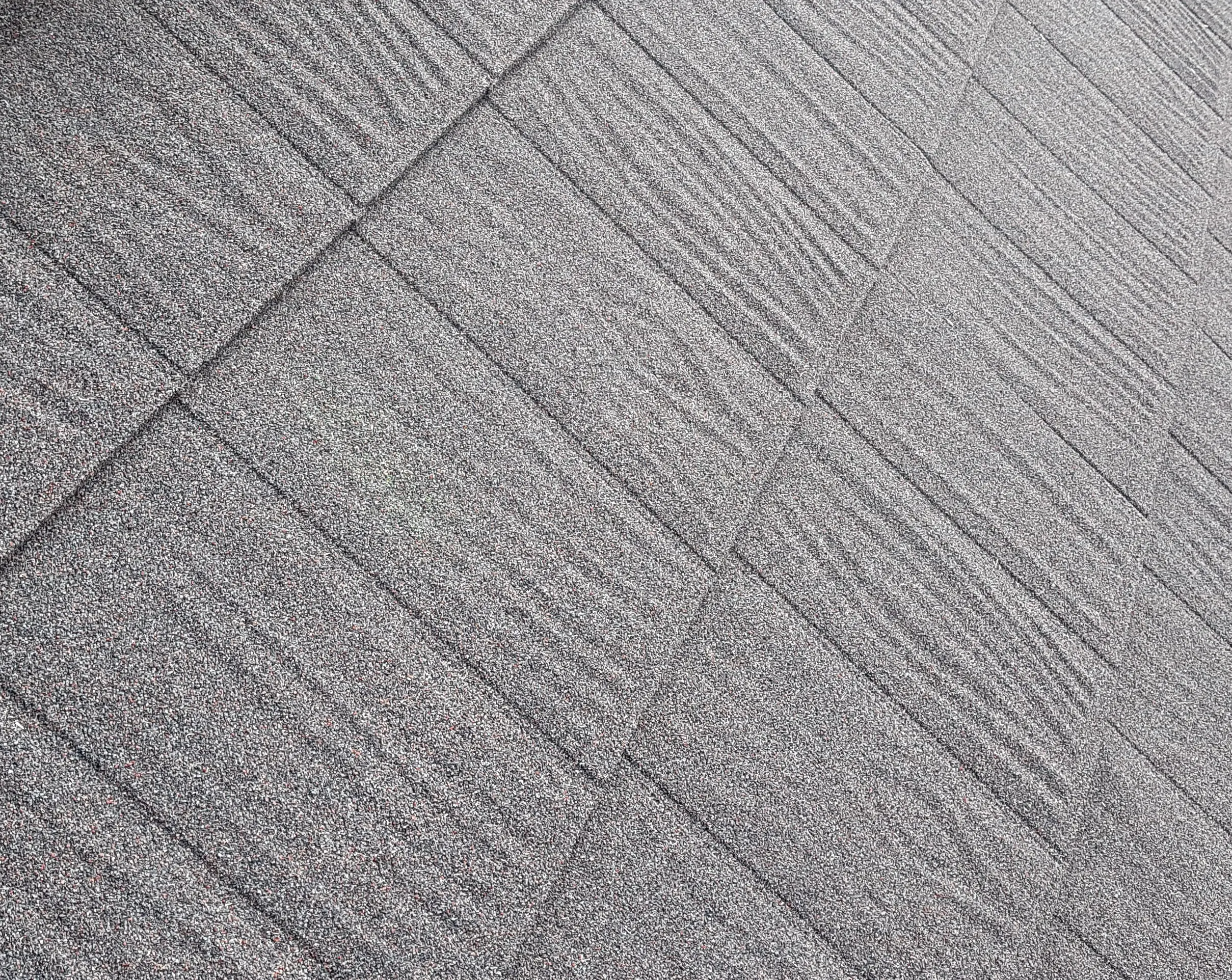

iShake

The perfect replacement for handsplit wooden shakes

iShake is pressed from the finest corrosion resistant steel. These shingles will protect your home from fire, wind and hail for many years to come.

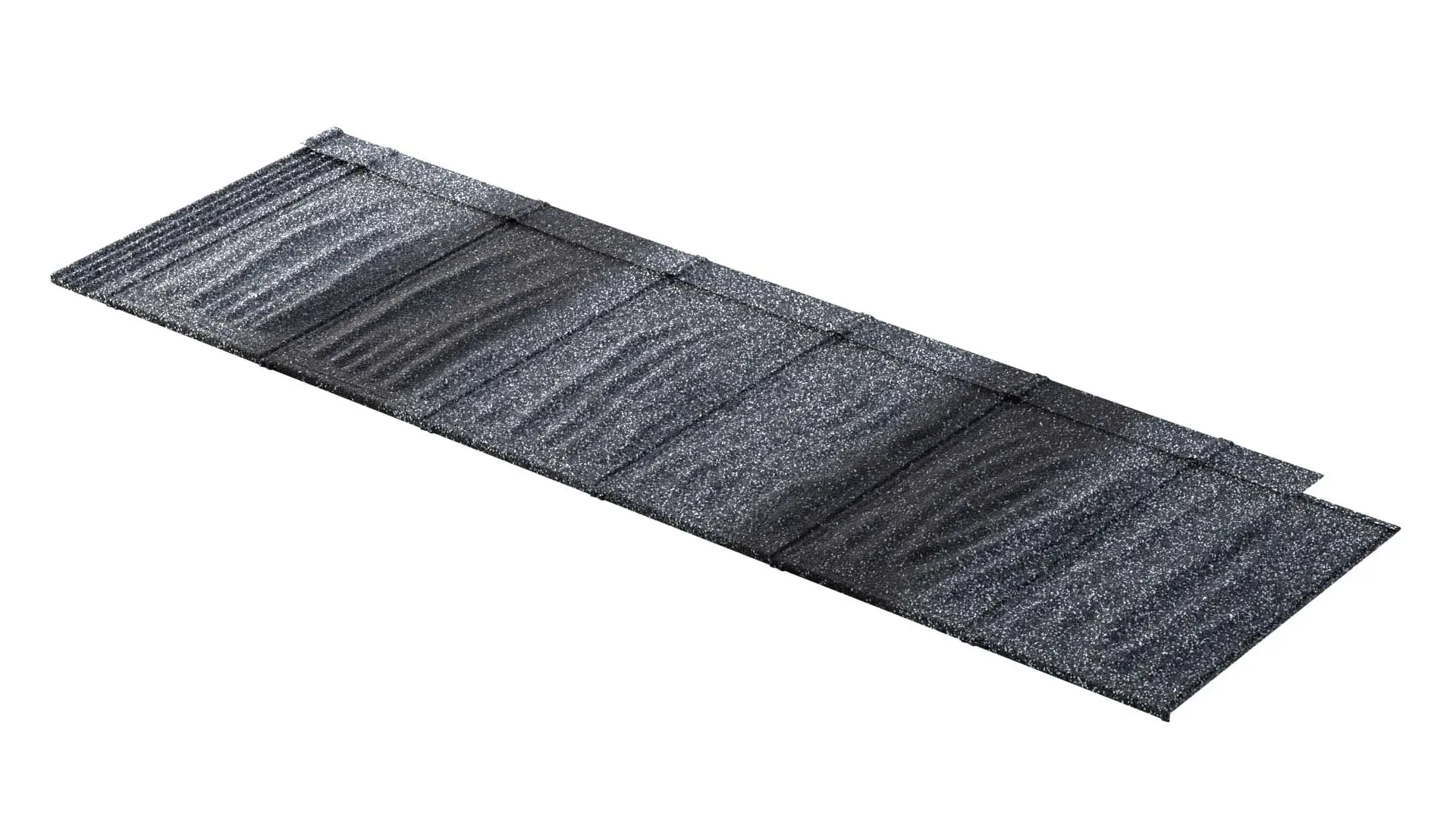

The iShake is an six tile, stone-coated panel pressed from a high grade of protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.

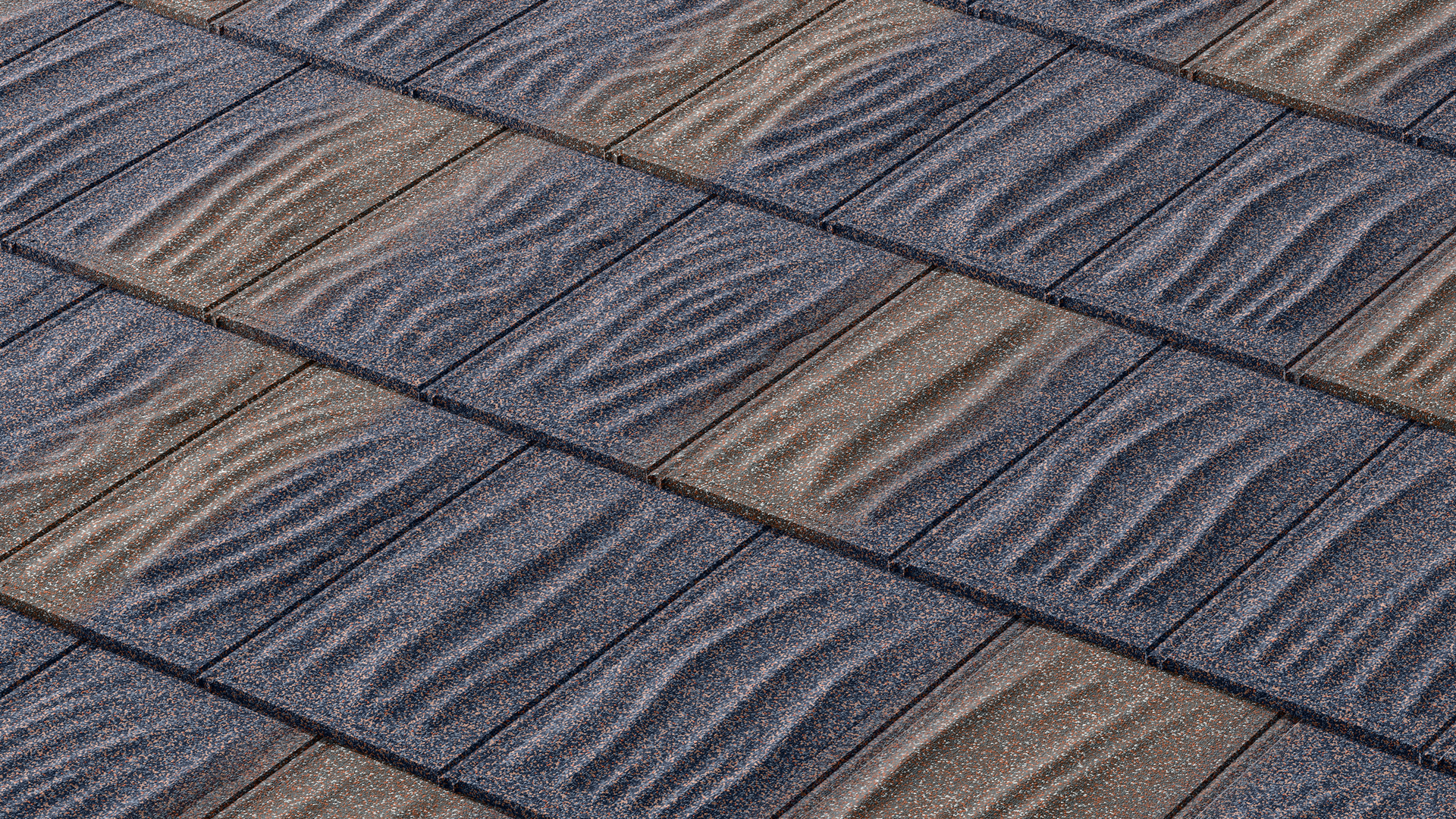

Textured

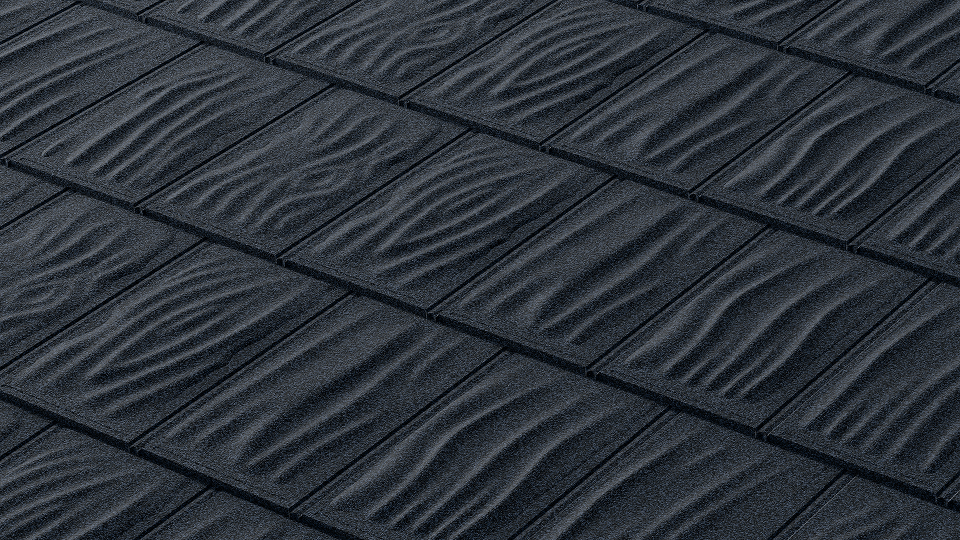

Charcoal

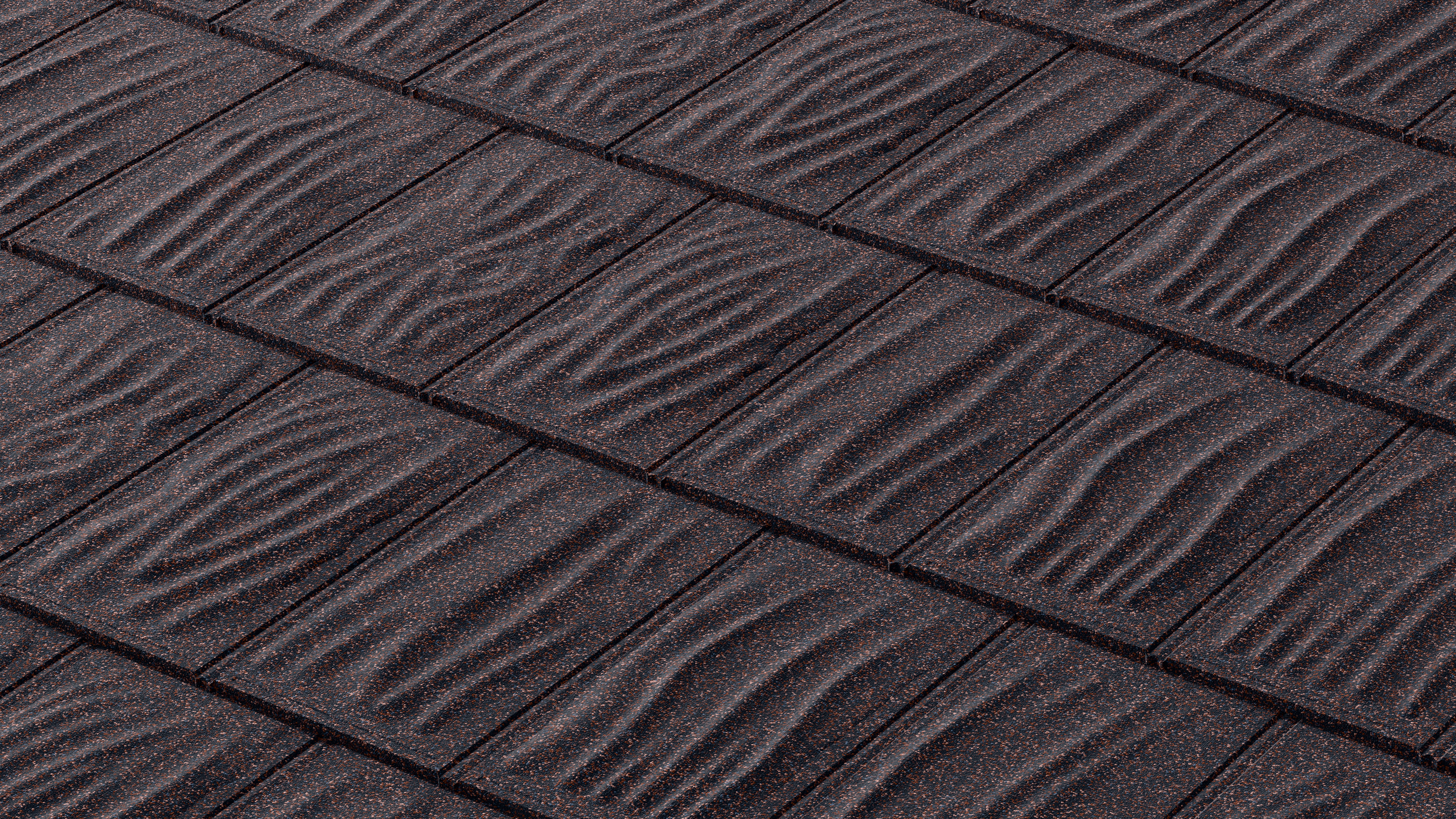

Ironbark

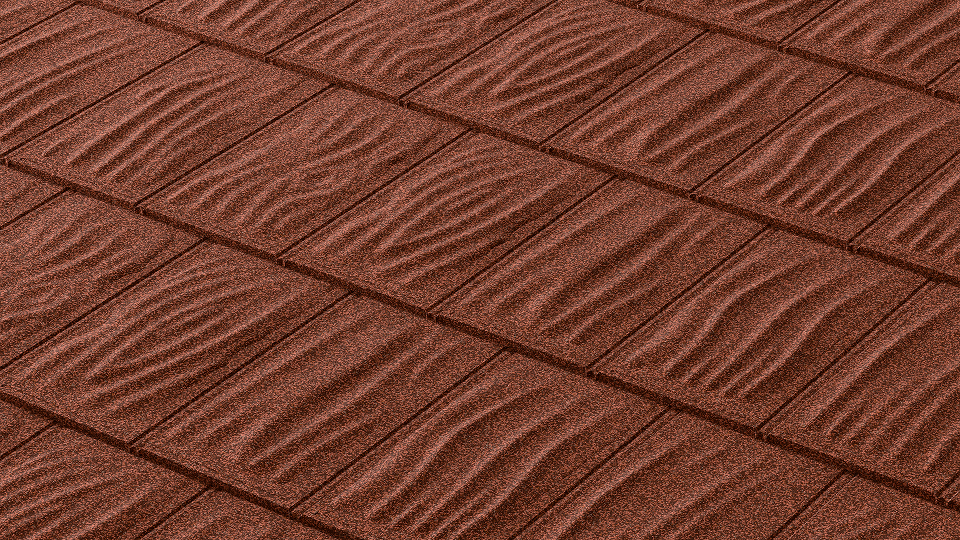

Scarlet

Product specifications

Overall Length: 1330 mm
Length of cover: 1230 mm
Width of cover: 375 mm
Roof cover /Tile: 0.46 m2
Tiles /m2: 2.17
Weight /Tile: 3.29 kg
Maximum roof pitch: 90 degrees
Minimum roof pitch: 10 degrees

Technical documents

iShake Brochure
- pdf
Download
iShake Specification Sheet
- pdf
Download
iShake Eave Apron
- DWG
- PDF
iShake Box Barge 1
- DWG
- PDF
iShake Box Barge 2
- DWG
- PDF
View all CAD Drawings View all documents
