eQube

Fully-integrated solar panels fitting in-line with the Metrotile Qube tile profile system

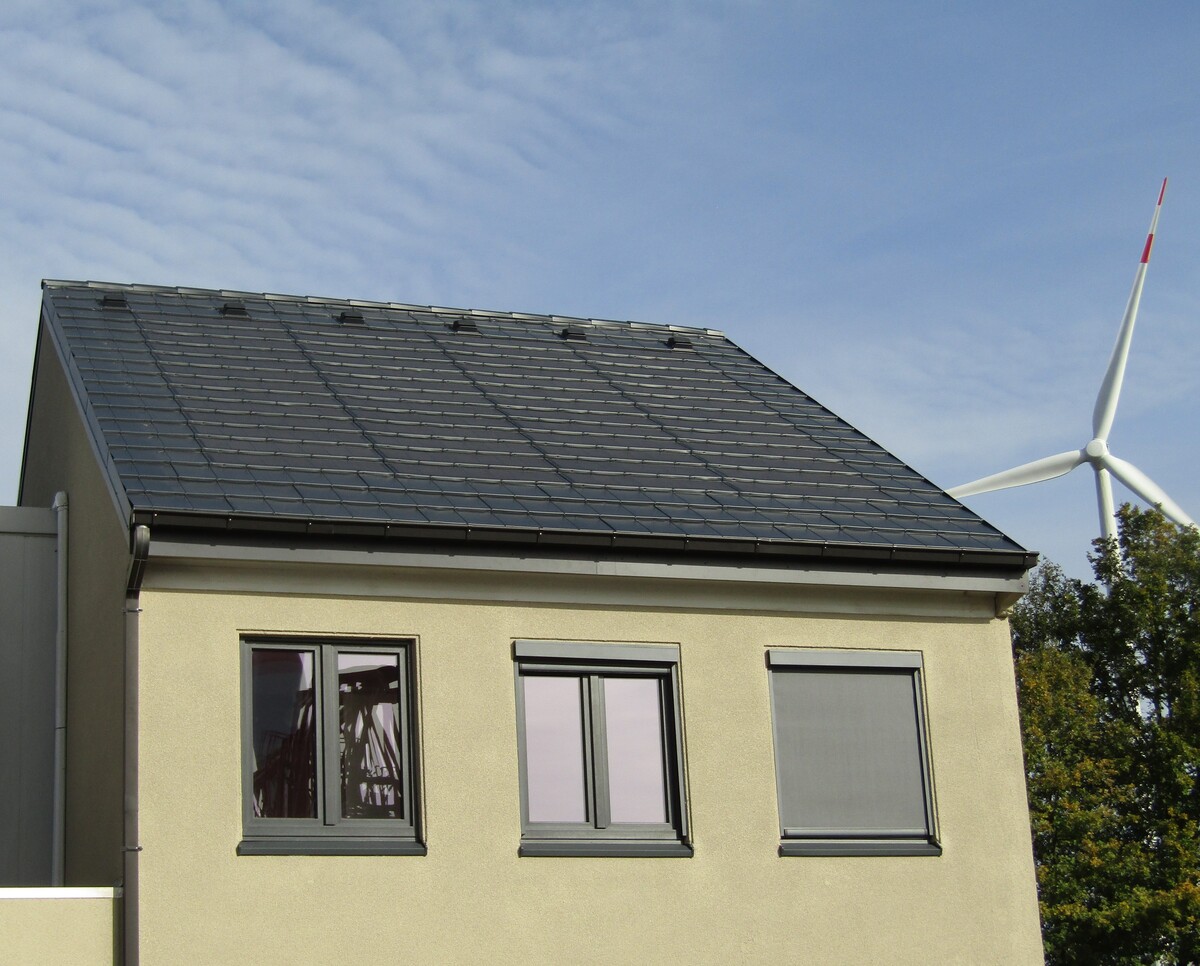

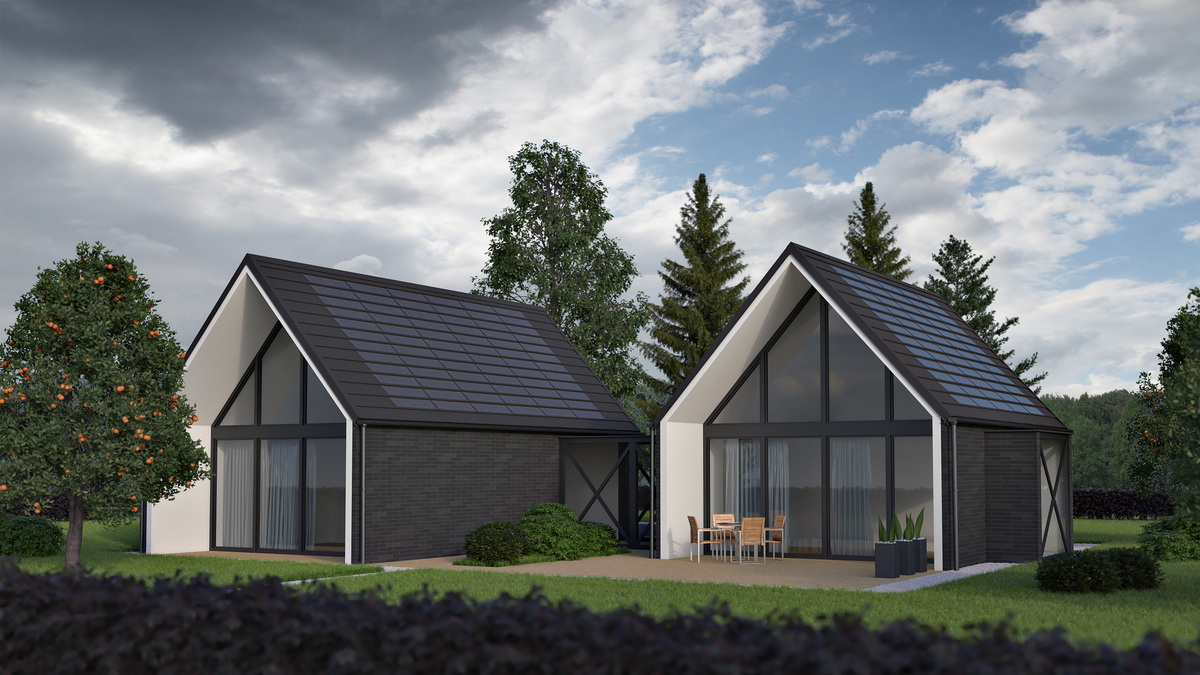

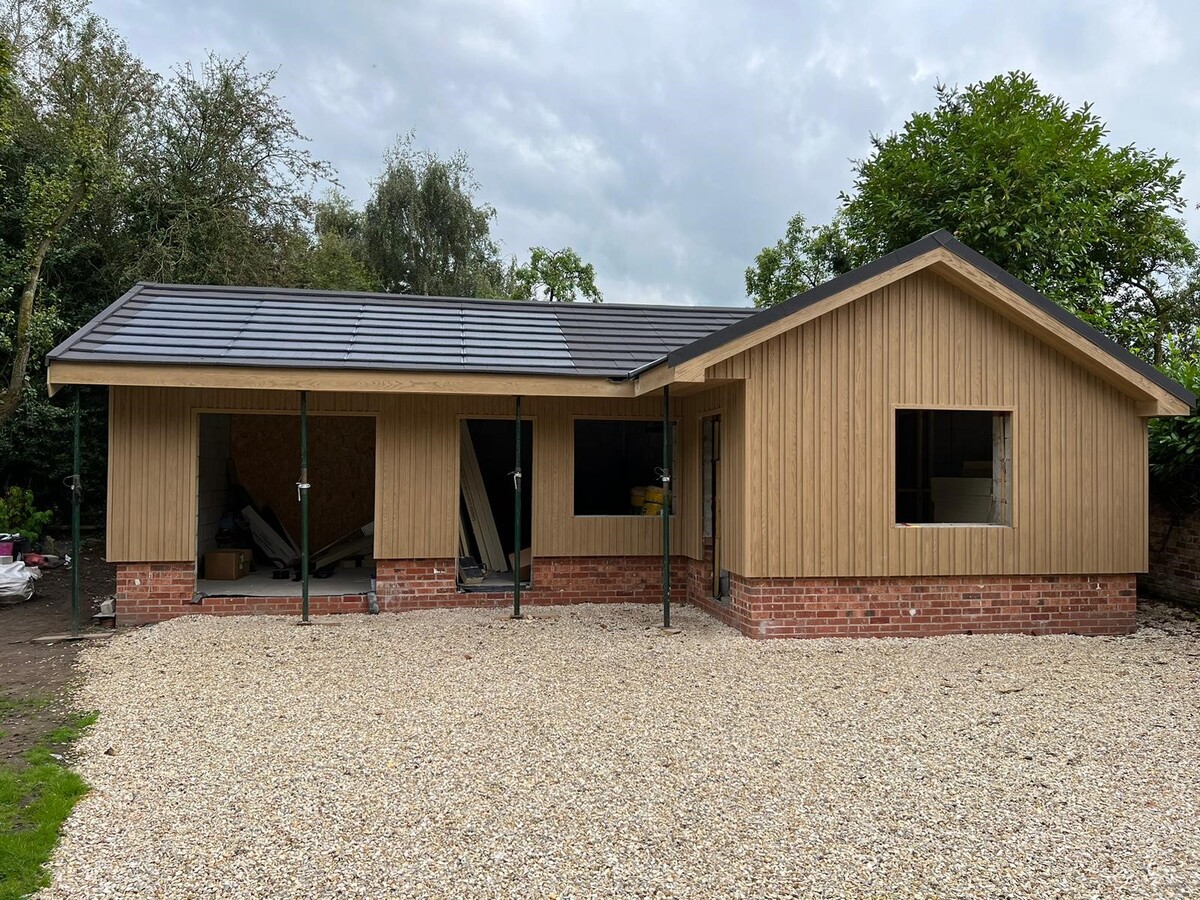

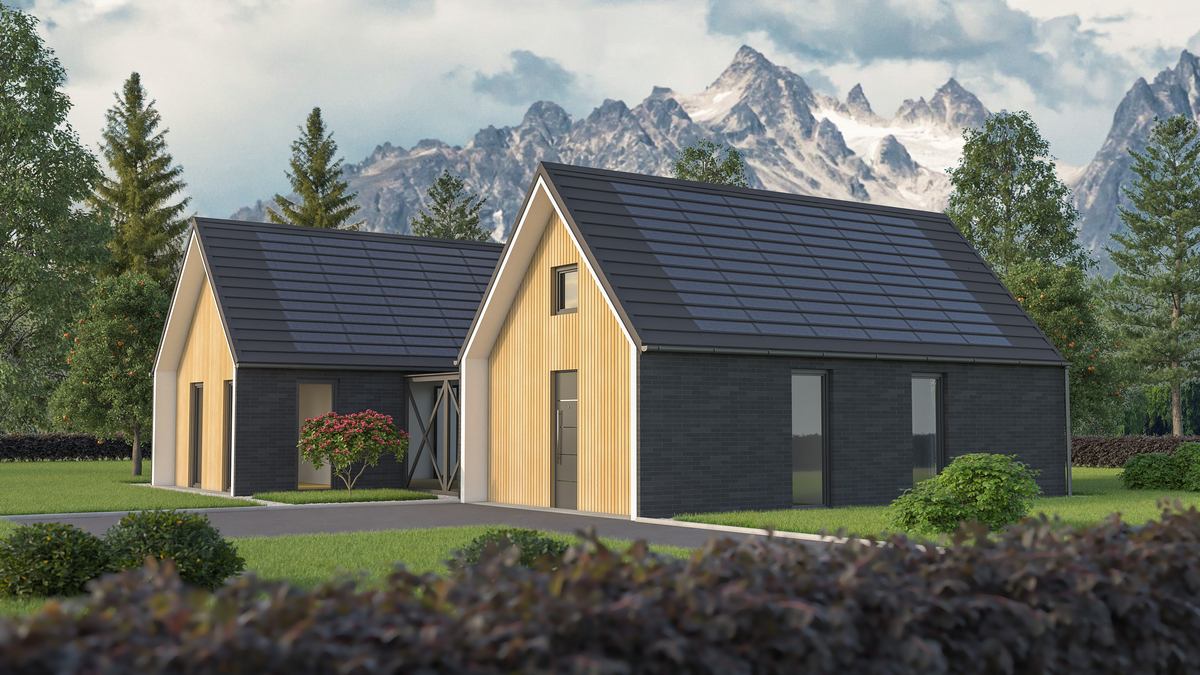

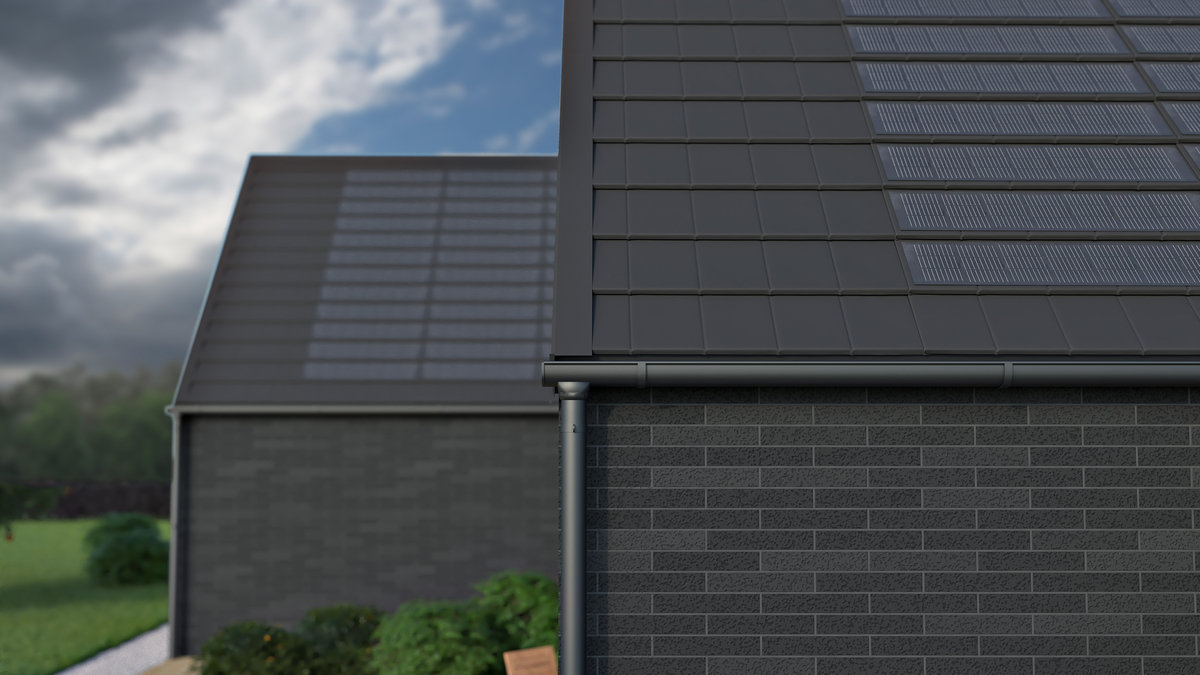

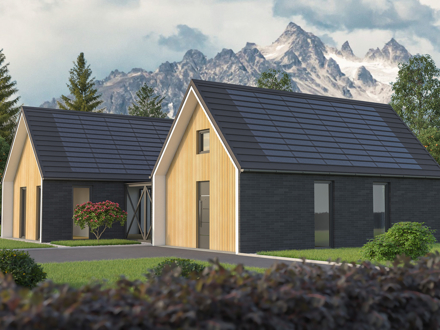

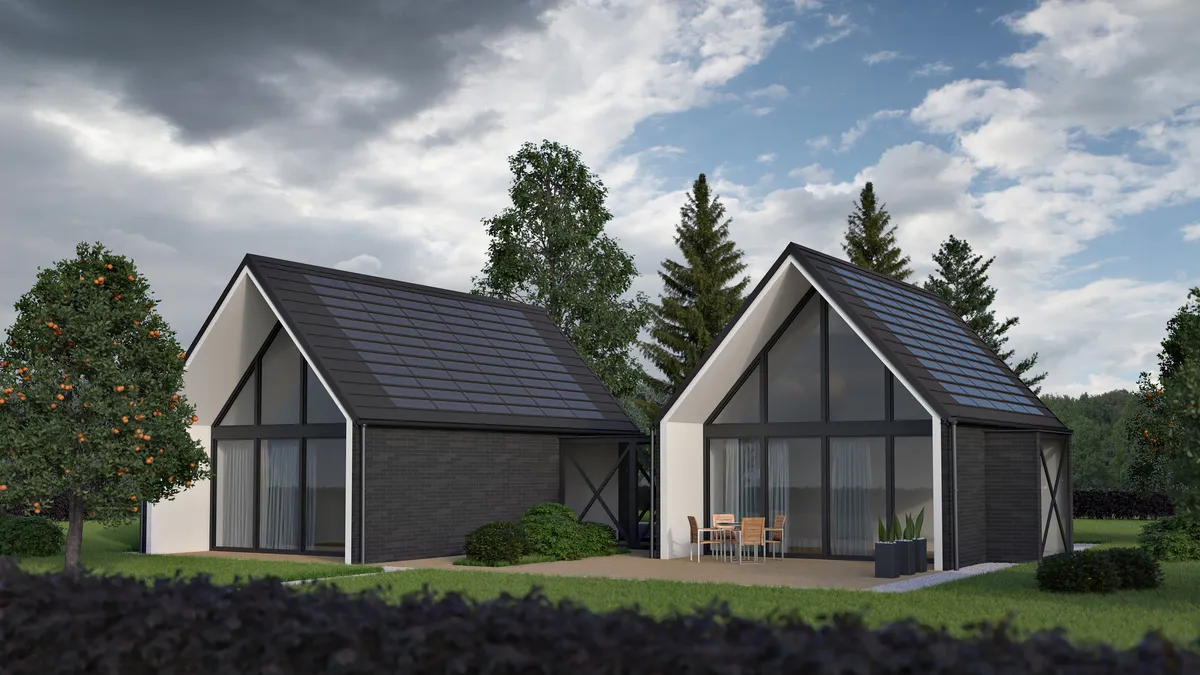

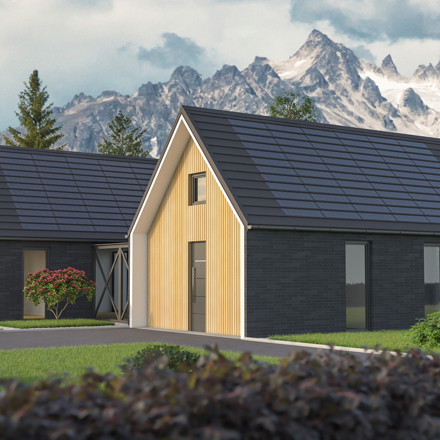

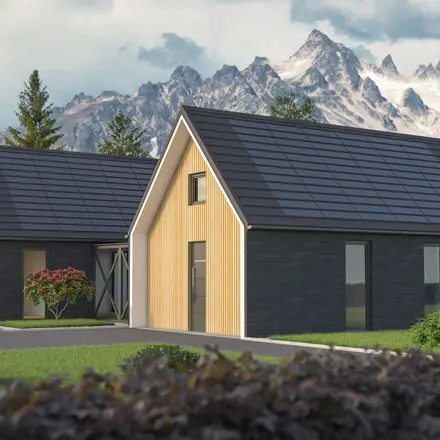

With the eQube Photovoltaic System, there is no longer a need to install bulky and heavy photovoltaic panels on the roof. Fully integrated eQube solar panels match perfectly with the Metrotile Qube tile profile, so they can be installed all-in-one installation.

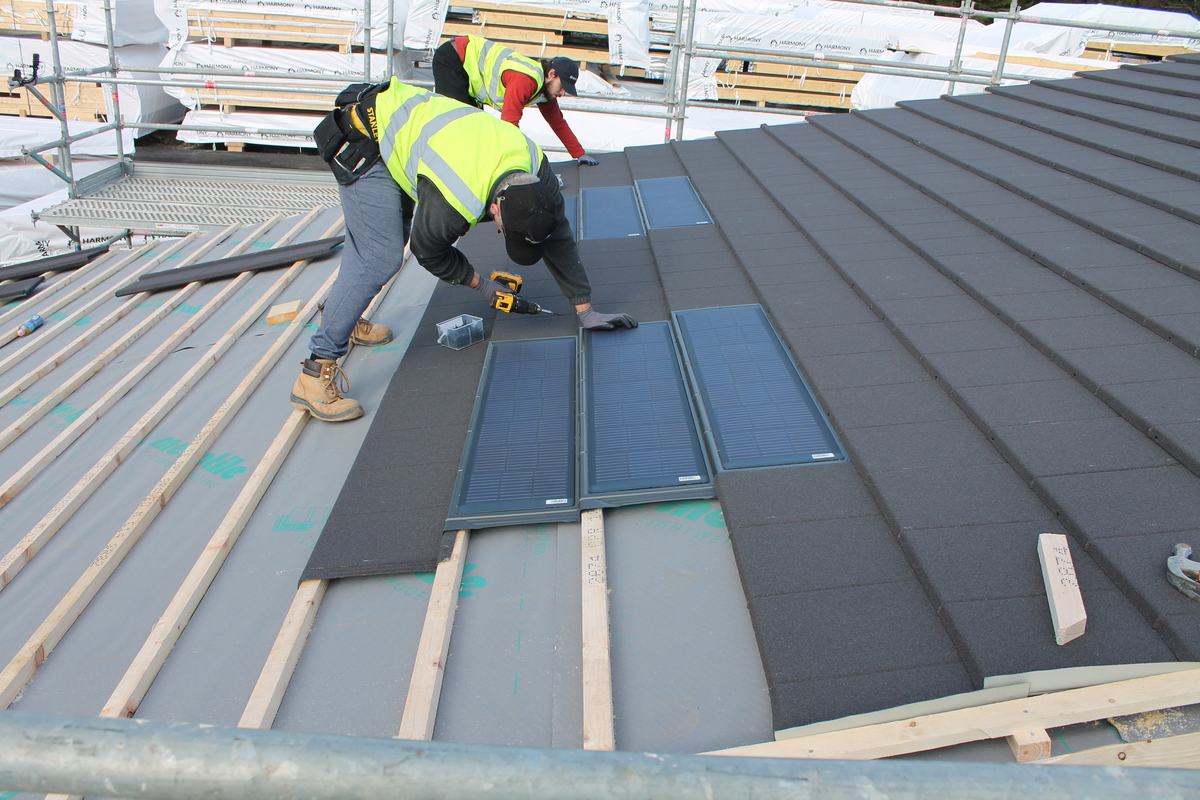

eQube tiles are easily installed on the roof during refurbishment or when installing a new roof, without the need for special mounting systems or additional sealing materials. Get clean, emission-free electricity to power your home together with your new roof installation.

Technical documents

Color

Black

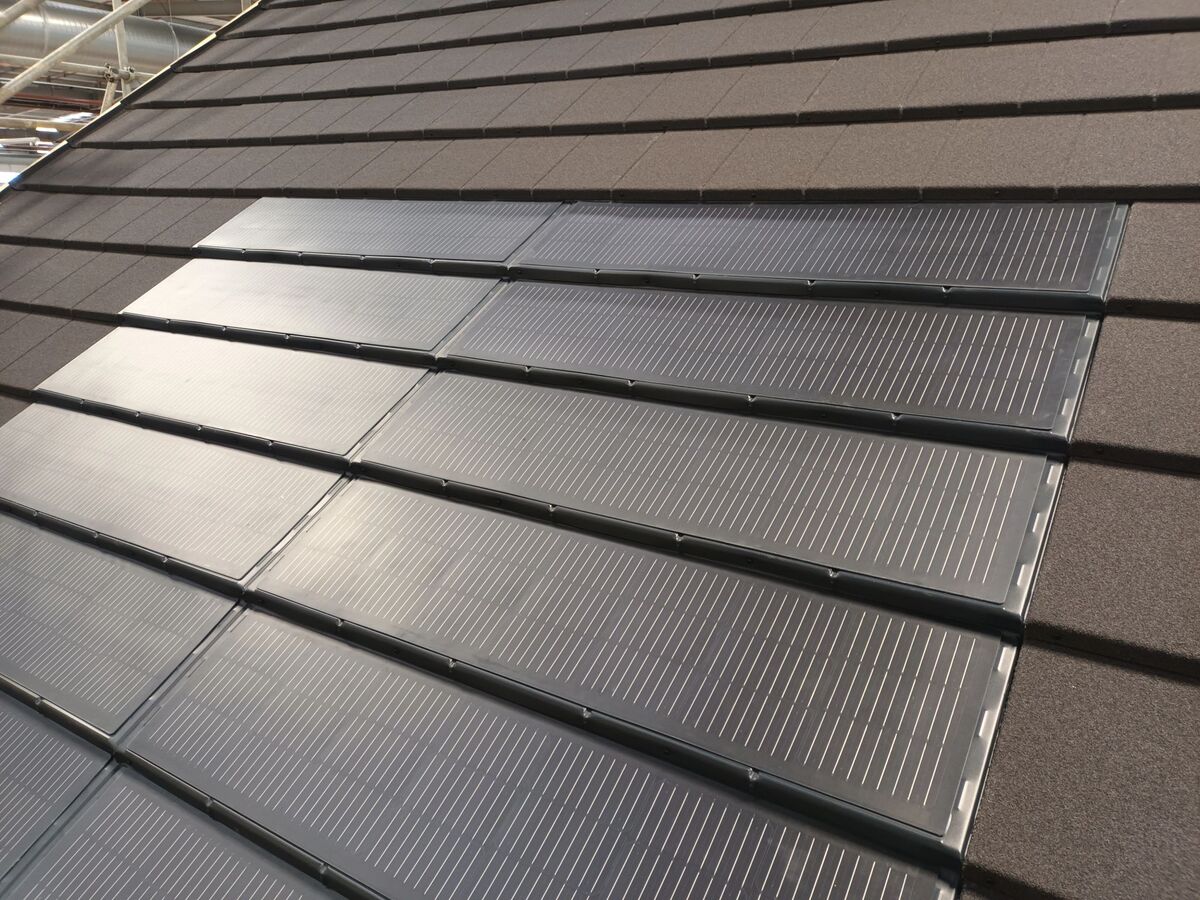

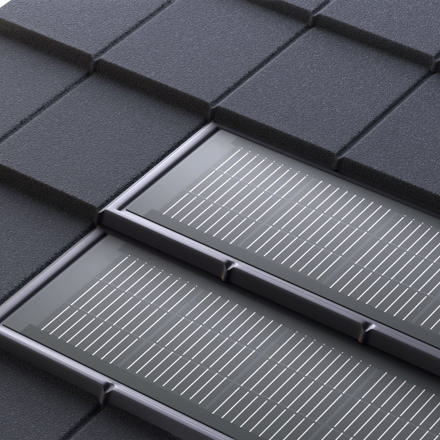

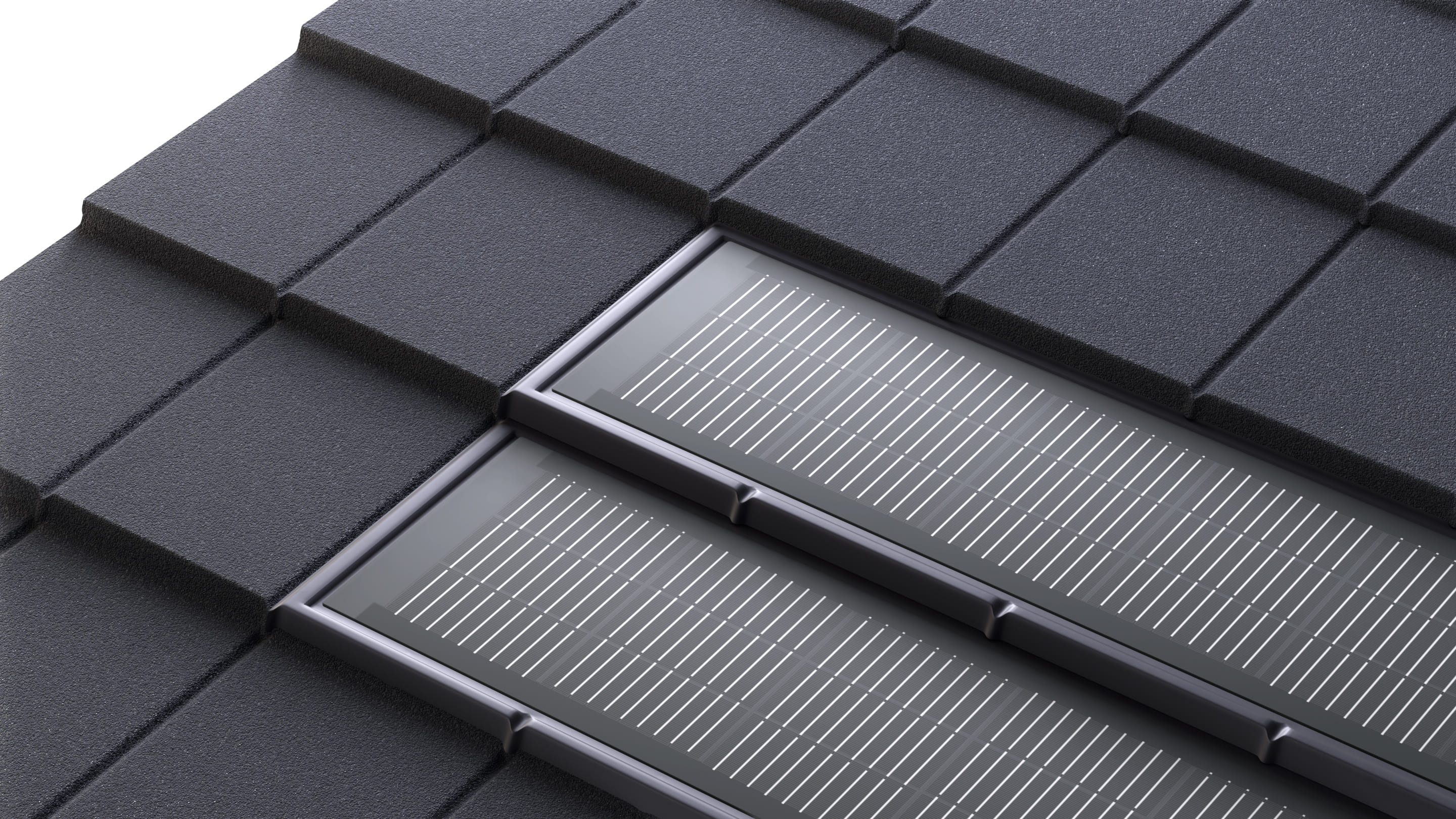

eQube cost-effective monocrystalline solar panels can be incorporated with the Qube Metrotile lightweight metal profile.

Product specifications

Dimensions, mm: 1210 x 300
Power: 67 W
N° of cells: 21
Type: VSC01M-3x07
Cell Type: HJ
N° of cells: 21
Voc: 14.83 V
Imp: 5.3 A
Vmp: 12.86 V
Isc: 5.37 A
