Bond

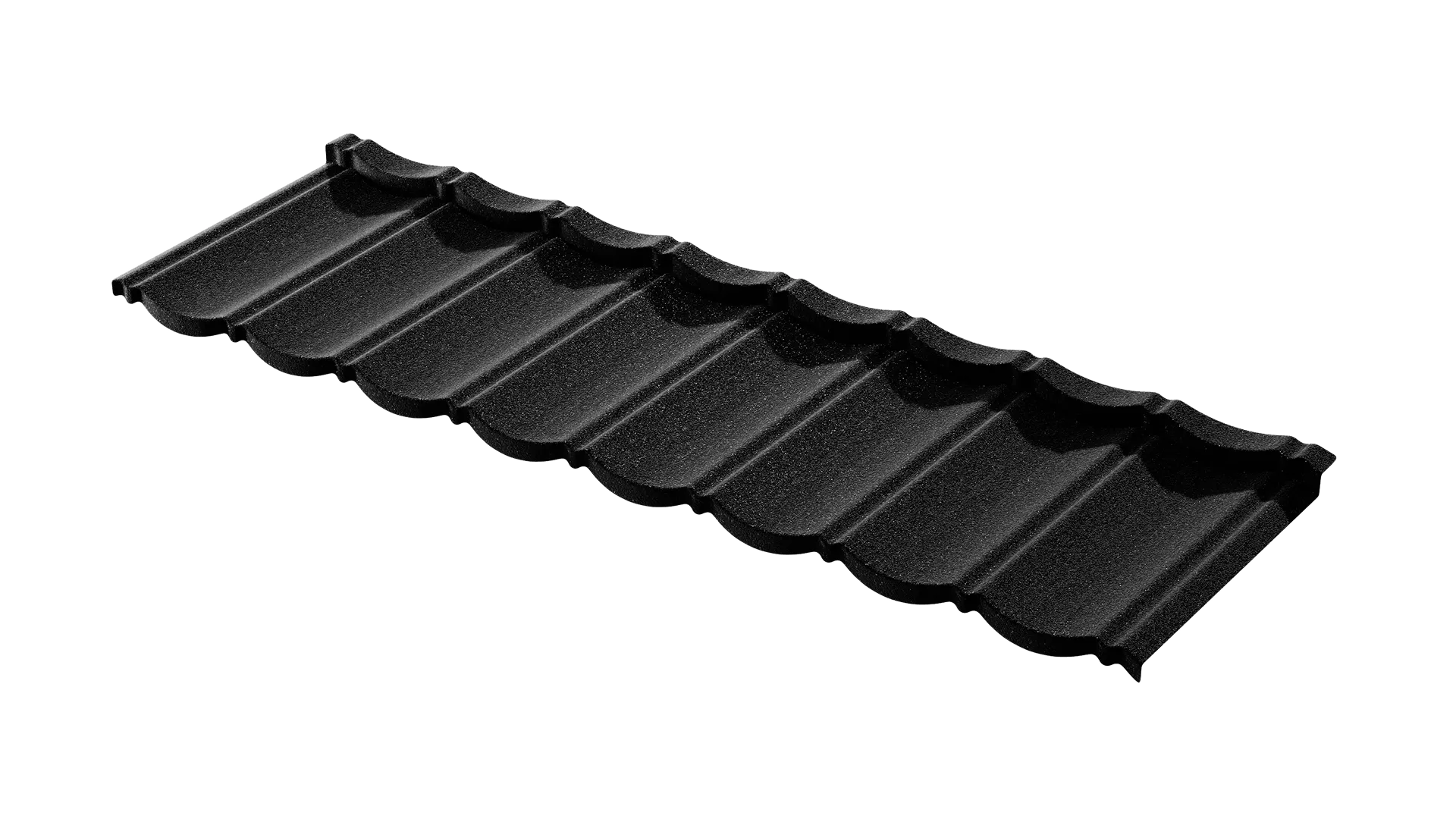

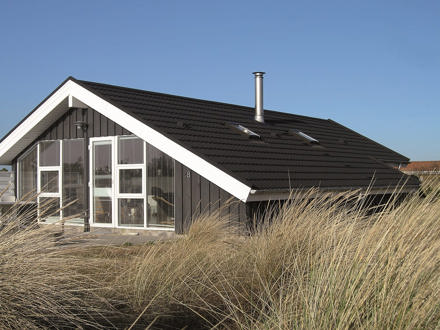

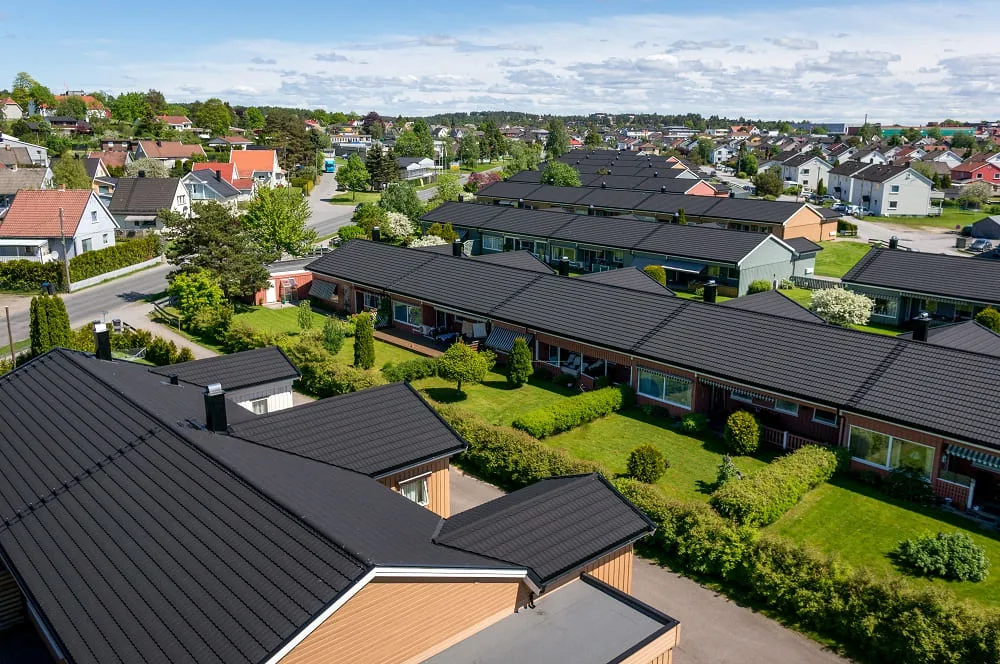

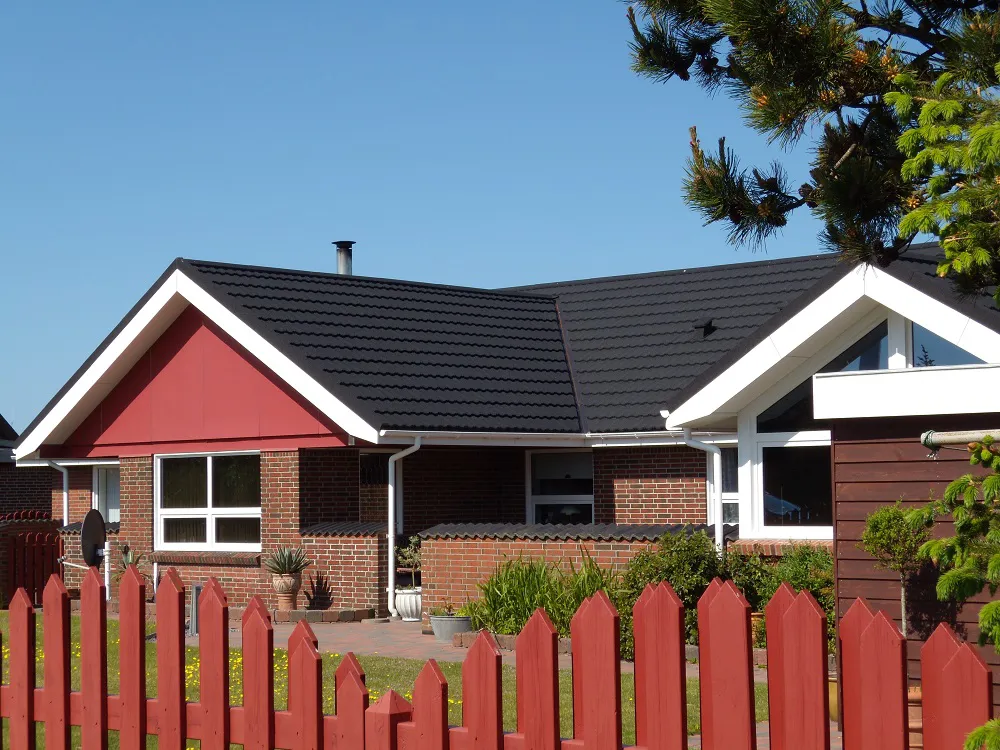

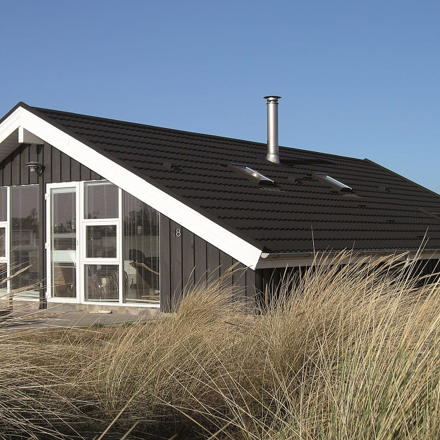

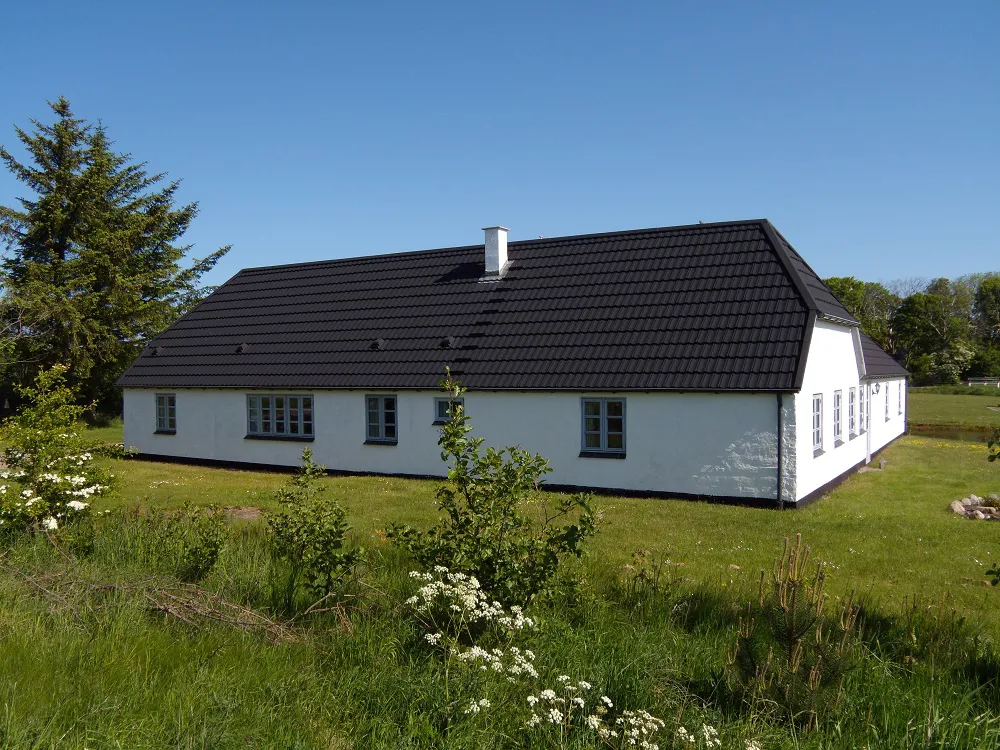

16 CBL PA Coal Black
Smooth flowing curves for a timeless appeal

Color of stonecoated roof tiles

  • Coal Black

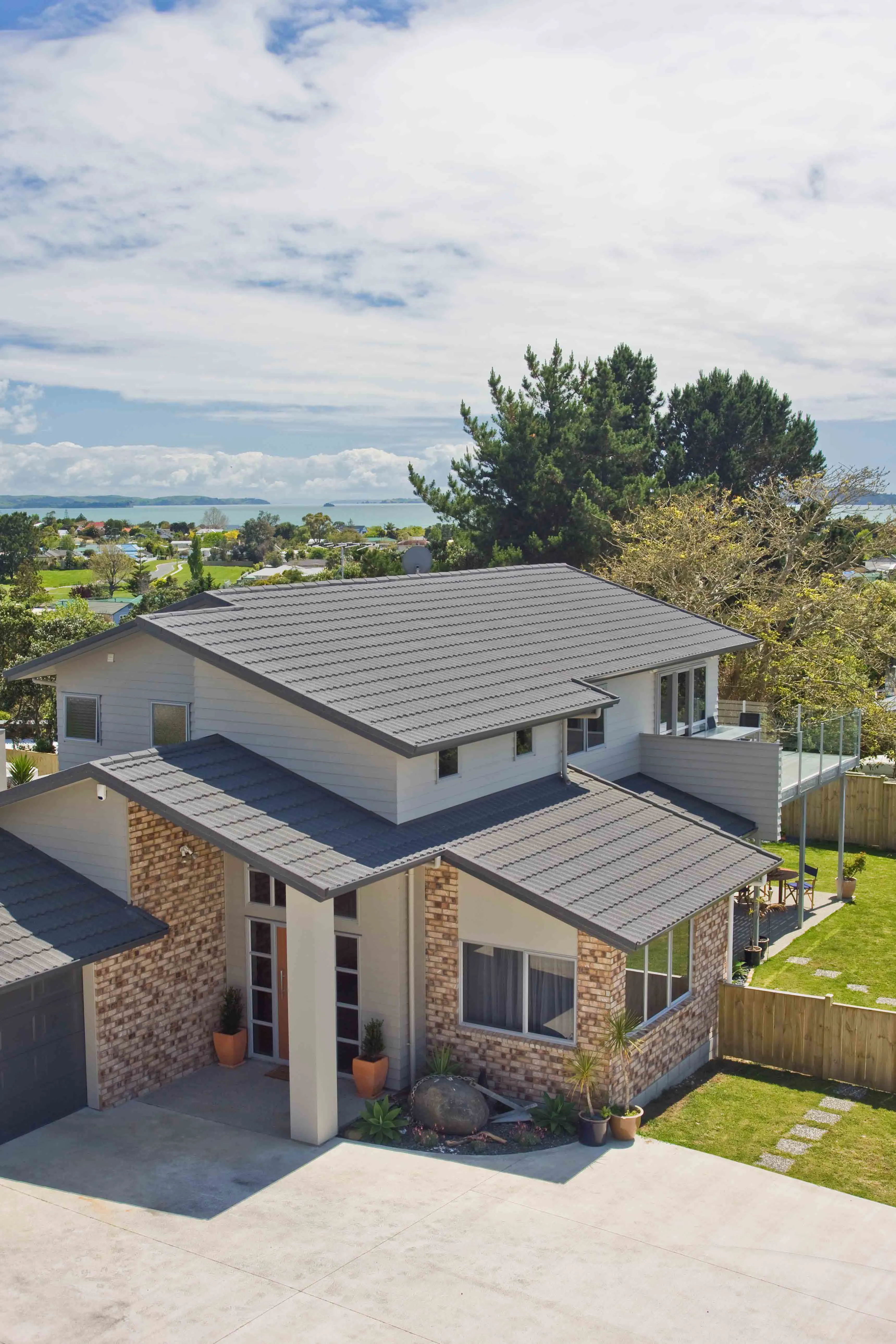

  • Charcoal Granite

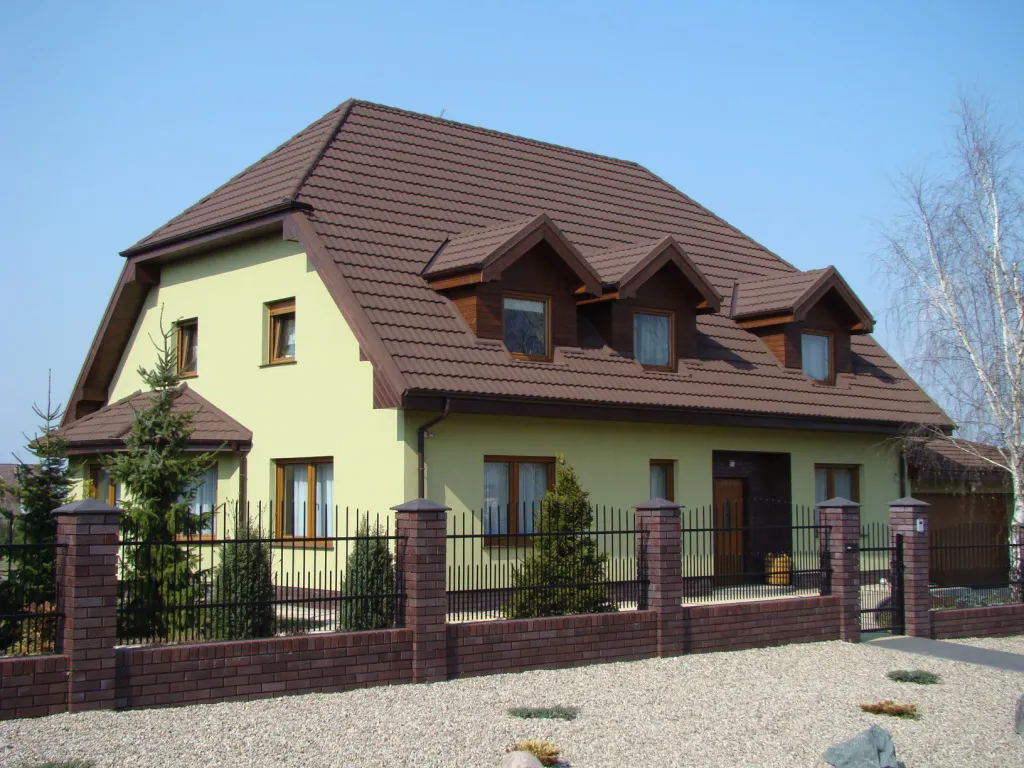

  • Coffee
  • Forest Green
  • Spanish Red
  • Terracotta
  • Brindle

The Bond profile is manufactured from steel flat sheets with a high grade protective layer and is available in a wide selection of colors to enhance any exterior color scheme. Available in both .450 and .900 anti-vandal steel thickness.

Product Specifications

Overall Length
1330 mm
Length of cover
1270 mm
Width of cover
371 mm
Roof cover /Tile
0.47 m2
Tiles /m2
2.13
Weight /Tile
3.01 kg
Maximum roof pitch
90 degrees
Minimum roof pitch
10 degrees

Technical documents

  • Bond Brochure
    • pdf
  • Bond Specification Sheet
    • pdf
